Sugar-free orange jam looks like a simple ambient spread, but procurement outcomes are largely determined upstream—by citrus availability/quality and by the formulation “engine” that replaces sugar’s preservation and texture functions. This guide maps the physical flow, highlights where total delivered cost (TDC) locks in, and shows which spec choices most reliably reduce rework, damage, and continuity risk.
Sugar-free orange jam is an ambient, shelf-stable spread, but its supply chain is built around two physical dependencies that behave like “fixed cost anchors”: (1) citrus fruit/peel availability (fresh + juice complex) and (2) the processing system that replaces sugar’s functions (water activity control + gel structure + flavor balance). In reduced/no-sugar systems, pectin selection and process control become more sensitive than in conventional high-sugar jam. [2]
Typical flows start with oranges (fresh fruit and/or peel streams), move into fruit preparation (pulp/peel handling, debittering, cooking to solids), then into sugar-free formulation (pectin/hydrocolloids + sweetener system + acid), followed by hot-fill/pasteurization into glass or plastic, case packing, and ambient distribution.
The biggest structural cost drivers are set before the finished jar exists: fruit yield/quality, peel handling losses, energy/water at fruit prep, and the formulation system (pectin + sweeteners) that determines process robustness, scrap risk, and QA burden.
Sugar-free orange jam accumulates cost through yield losses (fruit + peel), energy-intensive cooking/thermal processing, specialty formulation inputs (pectin/hydrocolloids + sweeteners), and packaging weight/fragility (especially glass).
In most commercial recipes, fruit (pulp/peel) is the largest variable input by mass, while packaging is often the largest non-fruit cost line; pectin/hydrocolloids and sweeteners are smaller by mass but disproportionately drive quality outcomes (set, syneresis, sweetness perception) and rework risk. Sugar’s traditional roles—supporting pectin gelation and binding water (lowering water activity)—are partly replaced via pectin type choice (often LM/amidated systems) and a designed solids/acid/mineral balance. [2]
Treat each node as a “cost lock”: once you choose fruit form (fresh vs prep vs concentrate/peel), sweetener system, and pack format, you’ve constrained the feasible supplier set, line efficiency, and total delivered cost (TDC).
Oranges are bought for solids + flavor + peel functionality, not just weight; variability in brix/acid ratio and peel oil/bitterness drives downstream correction costs.
Physical drivers include seasonal harvest windows, orchard disease pressure, and competing demand from fresh and juice channels; peel availability is linked to juice processing throughput, making peel-derived inputs structurally exposed to the citrus complex. (In the U.S., Florida supply remains structurally constrained by citrus disease pressure, while California is a major fresh-orange source—net effect: citrus inputs can tighten quickly when weather/disease disrupts regional flows.) [3]
The “real” raw material cost is fruit cost plus yield loss (sorting, trimming, peel handling) and spec compliance (bitterness, peel cut, color), which determines how much downstream adjustment (acid, pectin, flavor) is needed.
This node is where hidden cost accumulates: water/energy use, wastewater load (especially peel debittering), and yield loss from peel/pith removal.
Physical steps typically include washing/grading, segmenting/pulping, peel cutting, blanching/debittering, and pre-cooking to target solids; each step introduces measurable loss (trim, evaporation) and adds utilities cost.
Fruit prep capability determines whether you can run marmalade-style peel inclusions consistently (cut size, bitterness control) and how stable your incoming fruit base is—both directly affect scrap/rework rates later.
Sugar-free systems shift the “engine” of the product from sucrose to a designed matrix: sweeteners (bulk and/or high-intensity), pectin/hydrocolloids, acids, and sometimes fibers—then the thermal process must set the gel without breaking flavor.
Critical control points are pH, soluble solids (Brix/solids), viscosity/gel strength, and water activity management; reduced-sugar systems can be more sensitive to process drift, causing set failures (runny jam) or syneresis (weeping) if pectin/ion balance/solids are off. The underlying mechanism differs by pectin type: HM pectin typically relies on high soluble solids and low pH, while LM pectin relies more on calcium-mediated gelation—this is why “reduced/no sugar” spreads often need tighter calcium/pH governance than classic jam. [4]
This node drives the highest “quality cost of poor execution”: line holds, rework, and disposal. It also dictates which co-packers can run the SKU reliably (mixing shear, cook profile, fill temperature, hold time).
Packaging is not just a container; it’s a cost-and-risk system: glass adds weight and breakage exposure, while closures and seals are a primary shelf-stability gate.
Common formats are glass jars with twist-off lids, squeeze bottles, and foodservice tubs; QA gates include fill weight, vacuum/seal integrity, metal detection, torque checks, and micro release testing (yeast/mold focus for fruit spreads).
Packaging choices materially change outbound freight cost, damage rates, and retailer chargeback exposure; QA intensity increases when the formulation has narrower microbial/texture tolerance (often true in reduced-sugar designs).
Finished goods are ambient, but they ship like fragile freight: heavy cases, glass breakage risk, and temperature abuse sensitivity (color/flavor drift, texture instability).
Key physical drivers are cube/weight utilization, pallet pattern stability, dunnage, and warehouse handling; long dwell times or hot trailers can accelerate oxidation notes and peel bitterness perception even if microbiologically safe.
Landed cost is frequently driven by case weight and damage/returns, not just line price; logistics performance becomes a functional spec (pallet integrity, breakage rate) because failures convert directly into service-level loss.

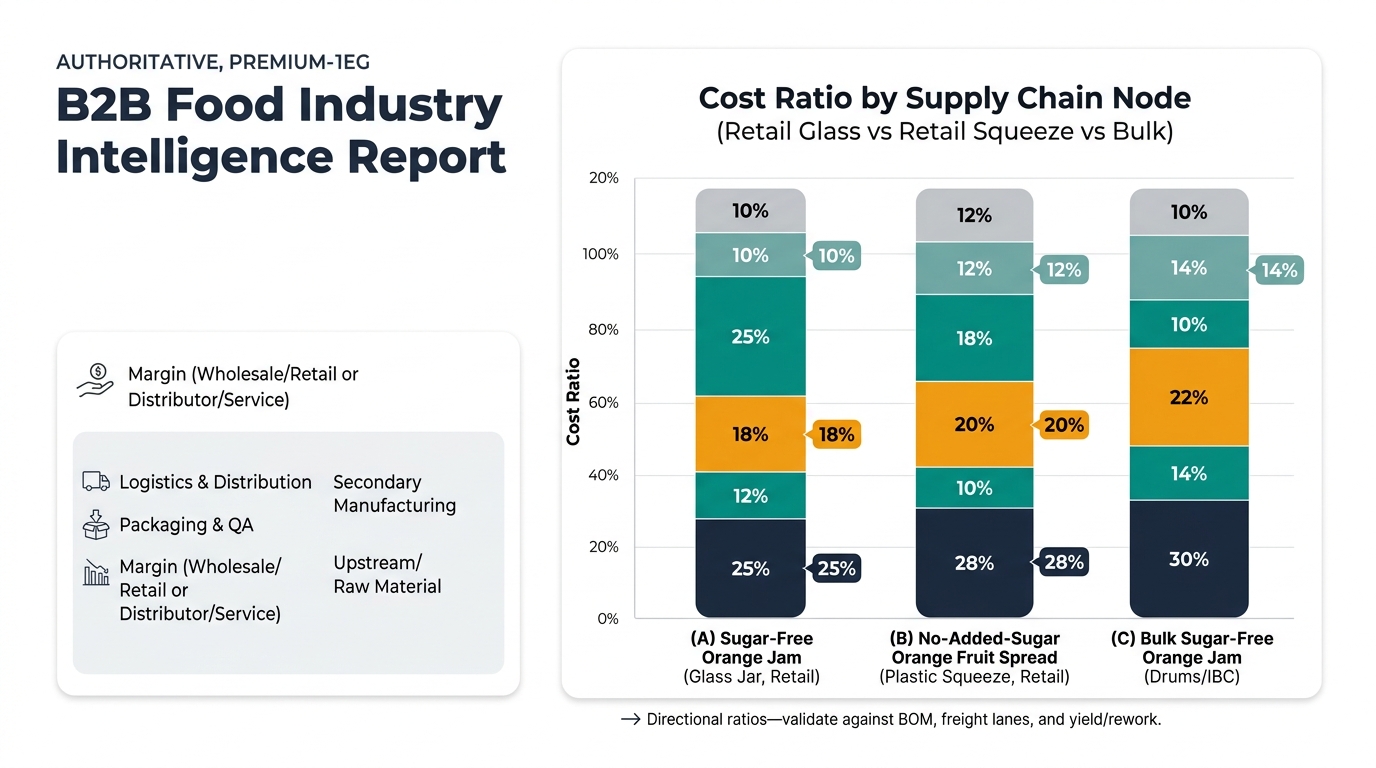

| Supply Chain Node | Cost Ratio (% of Final Cost) | Notes |
|---|---|---|
| Upstream / Raw Material (oranges/peel inputs) | 25% | Fruit quality/yield and peel inclusion drive real cost more than fruit price alone. |
| Primary Processing (fruit preparation) | 12% | Utilities + labor + wastewater; debittering/peel handling can be cost-heavy. |
| Secondary Manufacturing (formulation + thermal) | 18% | Sweeteners + pectin/hydrocolloids + energy; high sensitivity to scrap/rework. |
| Packaging & QA | 25% | Glass + lids + labels + cartons; QA release and foreign-body controls. |
| Logistics & Distribution | 10% | Weight/fragility-driven freight; breakage and returns are structural. |
| Wholesale/Retail Margin | 10% | Channel markup varies by private label vs brand and retailer terms. |
| Supply Chain Node | Cost Ratio (% of Final Cost) | Notes |
|---|---|---|
| Upstream / Raw Material | 28% | Higher fruit reliance can raise raw material share; consistency specs matter. |
| Primary Processing | 10% | Fruit base prep still significant; less peel handling if not marmalade-style. |
| Secondary Manufacturing | 20% | Often higher hydrocolloid/fiber system complexity to replace sugar body. |
| Packaging & QA | 18% | Plastic reduces weight; closure/oxygen barrier performance still critical. |
| Logistics & Distribution | 12% | Better cube/weight than glass; fewer breakage losses, still case-handling driven. |
| Wholesale/Retail Margin | 12% | Positioning and pack format influence channel markup. |
| Supply Chain Node | Cost Ratio (% of Final Cost) | Notes |
|---|---|---|
| Upstream / Raw Material | 30% | Fruit solids and peel specs dominate; tighter industrial consistency requirements. |
| Primary Processing | 14% | Prep and concentration/standardization costs are more visible in bulk. |
| Secondary Manufacturing | 22% | Process control for viscosity and pumpability; rework is expensive at scale. |
| Packaging & QA | 10% | Drums/liners cheaper than retail packs; QA release still significant. |
| Logistics & Distribution | 14% | Heavy freight; handling and contamination prevention are key. |
| Distributor/Service Margin | 10% | Often lower than retail, but service requirements can add cost. |
Three structural constraints shape availability, cost, and operational risk regardless of supplier brand or geography.
These constraints are rooted in physics (water activity/gel systems), industrial coproduct linkages (citrus peel/juice complex), and packaging mechanics (weight/fragility).
If your internal specs and packaging choices ignore these realities, you’ll experience recurring issues that look like supplier underperformance but are actually system-level constraints.
The most durable cost and risk levers in sugar-free orange jam sit inside the physical spec—fruit form, peel inclusion, sweetener/pectin system, and pack format.
Across nodes, the recurring cost drivers are yield loss in fruit prep, utilities in cooking/thermal steps, specialty formulation inputs that control gel/water activity, and packaging-driven freight/damage.
A spec that is clear on measurable physical parameters (pH, solids/Brix target, viscosity/gel strength method, peel cut size, bitterness sensory threshold, seal integrity criteria) reduces variability, prevents rework, and makes supplier performance comparable.
(Analyzed at: May, 2026)
Treat sugar-free orange jam as a process-capability buy, not a simple ingredient buy: contractually lock down the operating window (pH, soluble solids/Brix, and the specific pectin class and mineral system) and tie price discussions to measurable yield/rework and packaging damage KPIs. This works because reduced/no-sugar gel systems are inherently more sensitive to drift (and therefore to scrap and holds) than classic high-sugar jam, and those losses often dwarf a 1–2% line-price concession. [4]
With U.S. citrus supply still structurally constrained by disease pressure in key regions, the cost of a disruption is more likely to show up as missed service and expedited packaging/freight than as a neat raw-material surcharge—so the stake is typically a mid-single-digit swing in TDC over a season, not pennies per jar. [3]
