This guide maps how mango-juice-concentrate is physically made, preserved, and shipped—and where procurement outcomes (landed cost, rejects, and continuity) get “locked in.” It’s written for procurement leaders who know sourcing mechanics but want a clear mental model of mango concentrate’s seasonal campaign reality, spec risks, and the cost drivers that actually move supplier economics.

Executive Summary

• Cost lock-in happens at origin: harvest window + campaign throughput + fruit solids/yield drive most of the year’s economics.
• Specs are process constraints: tightening color/fiber/clarity typically adds sorting/finishing/energy and can reduce campaign output.
• Aseptic is the global workhorse: it enables ambient bulk shipping, but sterility/pack integrity failures are “binary” (release vs scrap).
• 2026 risk lens: container routing/energy volatility remains a real landed-cost swing factor; build freight and energy pass-through discipline into contracts.

1) How the Physical Supply Chain Is Built (and Where Costs “Lock In”)

Mango juice concentrate is physically constructed around one hard constraint: a short harvest window at origin forces processors to run intense campaigns, convert fruit into shelf-stable bulk (often aseptic), and carry inventory for year-round demand. From a cost perspective, most value is “locked in” before the product ever leaves origin—through fruit quality (soluble solids/Brix, fiber, defects), conversion yield, and aseptic integrity.

Insight: The chain is a conversion-and-preservation system: turn perishable mangoes into stable concentrate fast, then move it globally in bulk.

Data: Industrial trade commonly splits into (1) mango puree/pulp concentrate (commonly ~28–30°Bx for many commercial specs) and (2) clarified mango juice concentrate (commonly ~65°Bx for clear beverage applications); bulk formats are typically aseptic bag-in-drum (~200–220 kg) or aseptic totes/IBCs.

Procurement Impact: Your landed cost and quality risk are structurally determined by three physical levers—fruit-to-concentrate yield, the processing line’s ability to hold specs consistently, and whether you ship ambient aseptic (lower logistics complexity) versus frozen (higher cold-chain exposure).

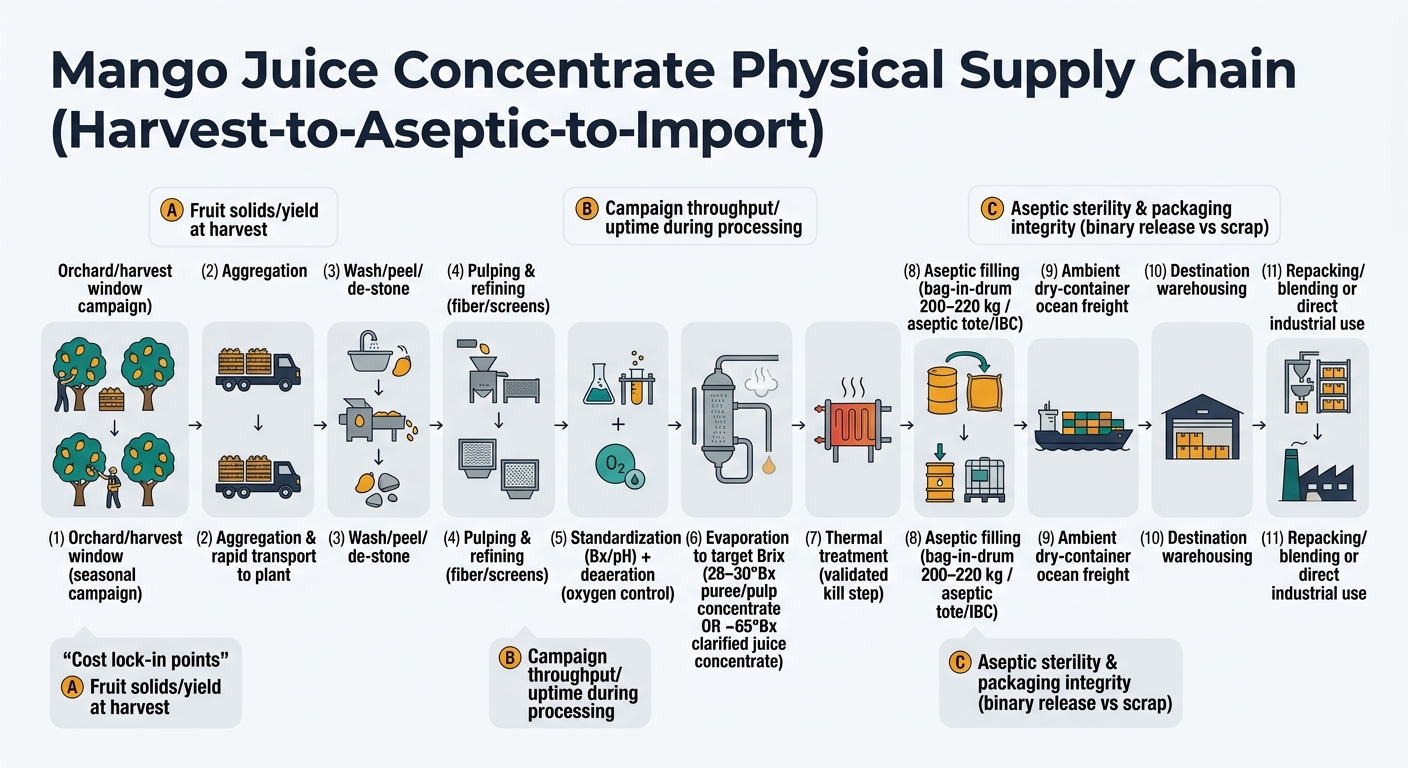

Physical flow (typical):

• Fresh mango aggregation → rapid transport to plant → wash/peel/de-stone/pulping & refining → standardization (Bx/pH) & deaeration → evaporation (to target Brix) → thermal treatment + aseptic filling → ambient ocean freight (dry container) → destination warehousing → repacking/blending or direct industrial use

2) Where Cost and Margin Accumulate (Node-by-Node)

Insight: Mango concentrate cost is a stacked conversion cost: fruit price and conversion yield dominate, then energy/throughput and packaging (aseptic) decide who can supply reliably at scale.

Data: The highest sensitivity points are (a) incoming fruit solids (natural Brix) and defects that change the fruit-to-concentrate ratio, and (b) aseptic packaging integrity—one failure can scrap an entire drum/tote lot.

Procurement Impact: Even without discussing “how to buy,” you can read supplier economics by asking where they sit on three curves: fruit access (aggregation), conversion efficiency (yield/uptime), and packaging/QA capability (aseptic discipline).

1. Upstream / Raw Material (Orchards, Aggregators, Fresh-Market Competition)

• Insight: The processor’s true “raw material” isn’t mangoes—it’s usable soluble solids delivered on time. Fruit quality and timing determine yield and therefore unit economics.
• Data: Incoming fruit variability (ripeness, fiber, bruising, disease) changes usable pulp recovery and the evaporation load required to hit Brix; higher natural Brix reduces the fruit needed per ton of concentrate.
• Procurement Impact: Two suppliers quoting the same concentrate spec can have structurally different costs if one sources higher-solids industrial varieties or has tighter control of harvest-to-plant time (lower microbial load, less oxidation, fewer off-notes).

2. Primary Processing (Pulping, Refining, Enzyme/Screening, Deaeration)

• Insight: This node converts fruit into a controlled intermediate (pulp/puree base) and removes the “physical liabilities” (stone, peel, excess fiber) that drive downstream inconsistency.
• Data: Key cost drivers are labor and line throughput during seasonal campaigns, water/CIP consumption, waste handling (peel/stone/fiber), and yield loss in finishing screens; oxygen management (deaeration) reduces browning and flavor fade.
• Procurement Impact: Primary processing discipline shows up later as fewer color/sensory deviations and fewer downstream blend corrections—because oxidation and enzymatic browning are often initiated here, not during shipping.

3. Secondary Processing (Evaporation to Concentrate + Thermal Kill Step)

• Insight: Evaporation is where energy and physics dominate: you are paying to remove water under controlled conditions without cooking flavor.
• Data: Steam/electricity load scales with how much water must be removed (driven by incoming solids) and with evaporator efficiency; clarified concentrate requires additional clarification/filtration steps and tighter control of turbidity.
• Procurement Impact: A supplier with modern multi-effect evaporators and stable utilities can hold Brix and acidity tighter at scale; suppliers with constrained energy or unstable uptime often compensate with more rework, longer heat exposure, or wider internal tolerances.

4. Packaging & QA (Aseptic Filling, Commercial Sterility, Documentation)

• Insight: Aseptic is both a packaging choice and a process capability; most “catastrophic” losses are packaging-integrity or sterility failures, not minor spec drift.
• Data: Typical bulk is aseptic bag-in-drum (~200–220 kg) or aseptic totes; QA commonly includes Brix, pH/acidity, microbiology (commercial sterility for aseptic), color, sensory, and residue/contaminant screening where required.
• Procurement Impact: Packaging is a fixed cost driver (bags, drums, sterile fittings) and a risk gate: a single spout contamination event can force disposal/claims and disrupt continuity even when upstream fruit was fine.

5. Logistics & Distribution (Ambient vs Frozen, Inland to Port, Ocean Freight)

• Insight: Logistics cost is structurally shaped by the preservation format: aseptic ships ambient in dry containers; frozen requires reefer capacity and tighter scheduling.
• Data: Inland trucking peaks during harvest campaigns; ocean transit-time variance and port dwell time affect planning, but aseptic reduces temperature-excursion risk relative to frozen.
• Procurement Impact: The physical choice of aseptic vs frozen is a cost-and-service architecture decision: frozen can preserve certain sensory attributes but increases exposure to reefer availability, temperature monitoring, and cold storage costs.

Product-Level Cost Breakdown

A) Mango Puree/Pulp Concentrate (~28–30°Bx, aseptic bulk)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Upstream raw fruit + aggregation	45–60%	Driven by farmgate price, fresh-market pull, and usable solids/yield.
Primary processing (pulping/refining/CIP)	8–12%	Throughput and yield losses in finishing screens matter.
Secondary processing (evaporation/thermal)	10–16%	Energy/steam and uptime during campaign are key.
Packaging & QA (aseptic drums/totes)	8–14%	Aseptic materials + sterility controls + lab/testing.
Logistics & distribution	8–14%	Inland + ocean; aseptic uses dry containers (typically lower than frozen).
Importer/handler margin & working capital	3–8%	Inventory carry is structural due to seasonal build.

B) Clarified Mango Juice Concentrate (~65°Bx, for clear beverages)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Upstream raw fruit + aggregation	35–50%	Higher concentration reduces freight per solids, but fruit quality still dominates.
Primary processing (juice extraction/clarification prep)	10–15%	Additional separation/filtration prep vs puree-style flows.
Secondary processing (evaporation/thermal)	15–22%	More water removal; tighter process control to protect flavor.
Packaging & QA (aseptic)	8–14%	Similar aseptic discipline; specs often tighter on clarity/turbidity.
Logistics & distribution	6–12%	Higher Brix improves freight efficiency per unit of solids.
Importer/handler margin & working capital	3–8%	Seasonal inventory still typical.

C) Frozen Mango Concentrate (alternative physical architecture)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Upstream raw fruit + aggregation	40–55%	Similar fruit/yield sensitivity.
Primary + secondary processing	18–30%	Often less aseptic cost but still requires thermal control and freezing energy.
Packaging & QA	6–12%	Frozen liners/drums; micro still relevant, plus temperature control checks.
Cold-chain logistics (reefer + cold storage)	15–28%	Reefer freight, plug-in time, destination cold storage dominate.
Importer/handler margin & working capital	4–10%	Higher storage cost and handling complexity.

3) Structural Facts Every Procurement Manager Should Treat as “Constants”

Insight: Mango concentrate behaves less like a continuously produced commodity and more like a seasonal manufacturing campaign with inventory carry.

Data: Most origins run concentrated processing windows aligned to harvest; processors build bulk inventory that must remain stable for months, making aseptic discipline and storage conditions central to continuity.

Procurement Impact: Supply continuity and quality consistency are physically constrained by campaign capacity (how much can be processed per day) and by how well product holds in bulk (aseptic integrity, oxygen exposure, storage temperatures).

• Insight: Yield is the hidden “exchange rate” of the category.
  Data: Fruit-to-concentrate economics shift with incoming Brix, defects, and fiber; the same nominal Brix spec on finished concentrate can require materially different fruit volumes and energy inputs depending on starting solids.
  Procurement Impact: Apparent unit price differences often reflect structural yield differences—suppliers with better fruit access or faster harvest-to-plant cycles can be structurally advantaged without changing the finished spec.
• Insight: Specs are not just numbers; they are process constraints.
  Data: Key technical control points include Brix (soluble solids), pH/acidity (micro stability and flavor), color/browning (oxidation), pulp/fiber (mouthfeel and settling), and microbiology/commercial sterility (aseptic).
  Procurement Impact: Tightening one spec (e.g., lower fiber or brighter color) often forces upstream sorting, extra finishing, or gentler thermal profiles—physically adding cost and potentially reducing throughput during the short campaign.

Key Insights (What to Remember When You Look at Any Supplier or Origin)

• Insight: Most cost is decided before export—by fruit solids, conversion yield, and campaign throughput.
  Data: The chain compresses a short seasonal harvest into year-round supply via evaporation and (often) aseptic packaging; bulk formats concentrate both value and risk into each drum/tote.
  Procurement Impact: When you evaluate a supply base, focus on physical capabilities: fruit access/aggregation control, evaporator/utility reliability, and aseptic QA maturity—because these determine whether a supplier can repeatedly hit Brix/pH/micro and ship without claims.
• Insight: Aseptic is the dominant “globalization enabler,” but it is also a single-point-of-failure node.
  Data: Commercial sterility depends on validated thermal processing and sterile filling; packaging integrity failures can scrap large lots.
  Procurement Impact: The most expensive surprises are often binary (release vs reject) rather than gradual (minor spec drift), which is why QA and packaging discipline are structural—not optional.

The Bottom Line for Your Next Contract

(Analyzed at: May, 2026)

Write your next mango concentrate contract as if freight and energy volatility will reappear mid-season—because recent container-market updates continue to flag longer routings and higher bunker/war-risk exposure as persistent variables rather than one-off noise. Lock in a two-origin allocation (even if it’s only 20–30% of volume) and pair it with a simple landed-cost clause that separates product price from documented freight/energy surcharges; it works because most cost is locked at origin, while logistics is the swing factor you can still govern after production. If you don’t, it’s common to give back the year’s “savings” in a few rushed spot containers and line-down avoidance—often a low-to-mid single-digit percent of annual spend, delivered as expediting and claims rather than an obvious price increase.
