TVP sourcing goes sideways when teams treat it like a simple commodity. This guide maps the real physical flow (crop → protein base → extrusion/drying → QA/pack → logistics) and explains where cost and supply risk “lock in,” so procurement can negotiate and dual-source with fewer surprises.

Executive Summary

• TVP is a conversion chain, not a commodity: upstream crop economics set the floor, but extrusion + drying scheduling often sets the short-term constraint. [1]
• Low-moisture extrusion (LME) is the workhorse for dry TVP: commonly discussed as <40% feed moisture, with outcomes highly sensitive to process settings. [1]
• Moisture control is a quality system, not a spec line: many commercial dry TVP specs target ~5–8% moisture max—packaging and post-dryer handling determine whether you actually stay there. [2]
• SPC economics are yield-driven: a widely cited rule-of-thumb is ~75% yield from defatted flakes to soy protein concentrate (process-dependent), making utilization and conversion loss central to cost. [3]
• 2026 context (why procurement should care now): plant-based demand has been uneven, but logistics volatility persists—so the winners are teams that lock in spec clarity + qualified alternates, not just “best unit price.” [4]

1) The Ground Truth Map: How TVP Physically Flows (and Where Cost “Locks In”)

TVP (textured vegetable protein) is not a single commodity—it’s a downstream, engineered dry ingredient whose cost and availability are “built” by three physical systems: (1) the crop and origination network (soy/pea/wheat), (2) the crushing/protein-base manufacturing system (defatting + flour/concentrate/isolate), and (3) extrusion + drying capacity that converts powders into stable, functional textures.

Insight: TVP’s landed cost is structurally anchored upstream (crop + protein-base conversion) but operationally constrained downstream (extrusion scheduling + drying energy + grade changeovers).

Data (validated): Most dry TVP is produced via low-moisture extrusion (LME). Industry and academic references commonly describe LME as operating at <40% feed moisture, and show that variables like moisture level and die temperature materially change functional outcomes. [1]

Procurement Impact: Even before any “commercial” discussion, you need a physical map: what your TVP is made from (defatted flour vs SPC/SPI), which process made it (LME vs HME), and which node sets the hard constraints (crop quality, protein-base conversion, or extrusion/drying throughput).

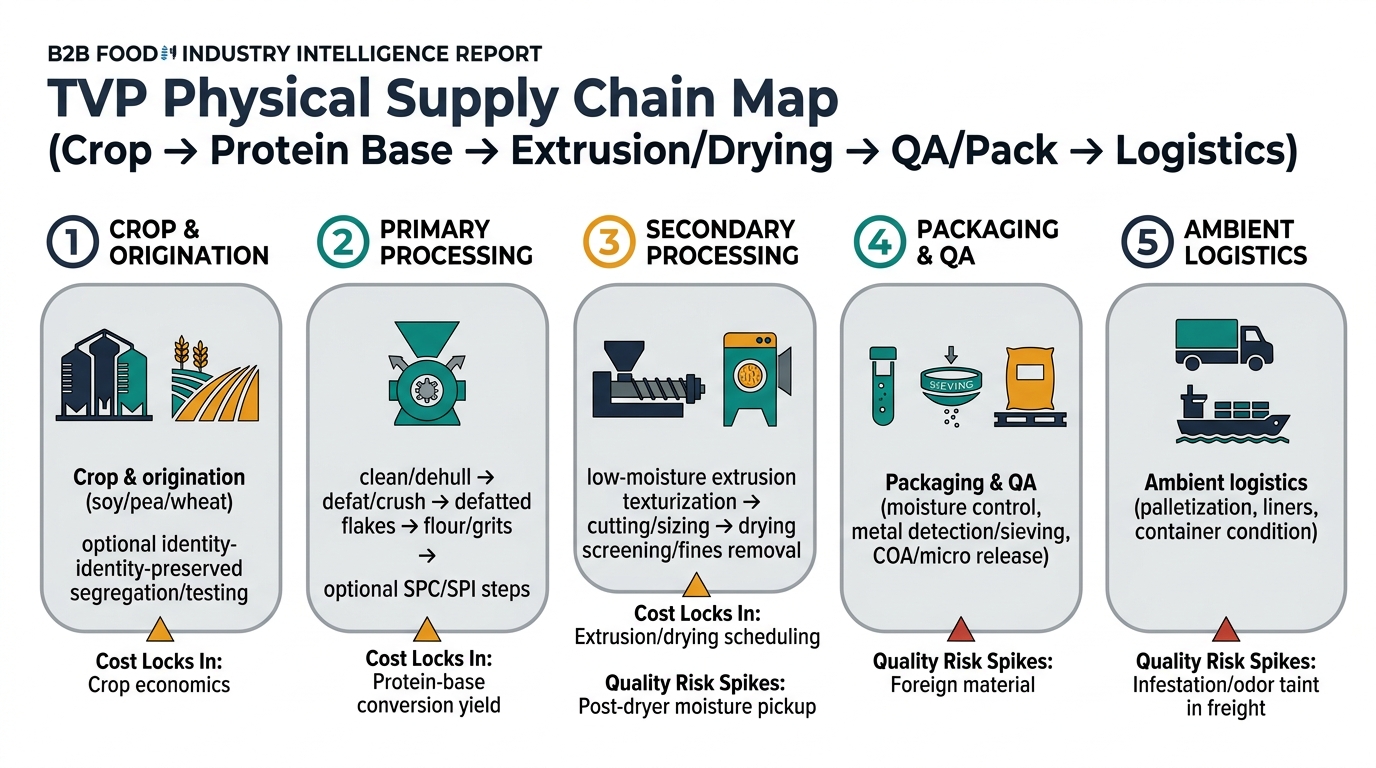

Physical flow (simplified):

• Upstream: soybeans/peas/wheat grown → aggregated and stored (identity preservation if non-GMO or specialty programs)
• Primary processing: cleaning/dehulling → oil removal (often solvent extraction for soy) → defatted flakes → milled to flour/grits or further processed to SPC/SPI [5]
• Secondary processing: extrusion cooking (texturization) → cutting/sizing → drying → screening (remove fines) → packaging
• Downstream: ambient logistics → industrial hydration and use in meat analogs/meat extenders

2) Where Cost and Margin Accumulate: Node-by-Node (with Product-Level Tables)

Insight: TVP is a “conversion chain.” Each node adds cost through yield loss (fines/off-spec), utilities (especially drying), and quality systems (micro, foreign material, allergen controls). The highest fixed cost intensity sits in protein-base assets (crushing/fractionation + drying) and in extrusion + drying lines.

Data (validated, but treat as directional): A commonly cited industry rule-of-thumb is that soy protein concentrate yield is about ~75% of defatted flake weight, illustrating how yield and utilization dominate unit economics (actual yield varies by process route and target spec). [3]

Procurement Impact: When you compare suppliers or grades, you’re often comparing different physical starting points (defatted flour vs SPC/SPI blends) and different conversion losses. That’s why “same protein %” does not guarantee the same total cost-in-use.

1. Upstream / Raw Material (Crop, Origination, and Segregation)

• Insight: Crop cost is not just farm price—it’s origination differentials, storage, and (when required) segregation/testing for identity-preserved programs.
• Data: TVP ultimately depends on soy/pea/wheat availability; identity-preserved (IP) or specialty programs add handling steps (segragation, testing, traceability) that physically narrow the eligible supply pool.
• Procurement Impact: Align internally on whether the spec truly requires non-GMO/IP (or other claims) because that requirement changes the upstream logistics design (separate bins/conveyance, more testing) and increases the probability of constraints during tight years.

2. Primary Processing (Crushing/Defatting → Defatted Flakes/Flour/Grits; Optional SPC/SPI)

• Insight: This node converts a crop into a protein base; it is capital-intensive and yield-sensitive. In soy, solvent extraction plus desolventizing/toasting is a standard industrial route for producing defatted flakes/meal streams used downstream. [5]
• Data: Standard soy protein ingredient pathways start from dehulled/defatted flakes or flours; concentrates/isolates are produced via extraction steps that remove soluble carbohydrates/fiber fractions, followed by drying. [3]
• Procurement Impact: Your TVP’s “floor cost” and sensory baseline (color, beany notes, residual fiber) are heavily shaped here. If a supplier uses different base materials (e.g., different flake quality, flour vs SPC), expect systematic differences in color, hydration behavior, and lot-to-lot consistency—before extrusion even starts.

3. Secondary Processing (Extrusion Texturization + Cutting + Drying)

• Insight: Extrusion is where TVP becomes TVP. The same formulation can produce very different textures depending on moisture, temperature profile, screw configuration, and die design; drying then sets shelf stability and brittleness.
• Data (validated): Academic reviews and studies commonly group “texturized vegetable proteins/TVP” under low-moisture extrusion regimes around ~30–40% moisture (wet basis), with high-moisture extrusion typically >40% for more fibrous “whole-cut” style structures. [6]
• Procurement Impact: Capacity constraints often show up as longer lead times for specific shapes/sizes (granules vs chunks) because die changes, dryer loading, and screening yield (fines) are grade-dependent. Functionally, this is also the node that drives rehydration ratio, bite, and expansion—so it is where “equivalent substitution” most often fails in practice.

4. Packaging, QA, and Release (Making a Dry Ingredient Truly Shelf-Stable)

• Insight: TVP is ambient-stable only if moisture and contamination are controlled; packaging and QA are not “nice to have”—they are what prevents caking, mold risk, and foreign material incidents.
• Data (validated): Commercial spec sheets commonly show dry TVP moisture targets in the ~5–8% max range (supplier- and grade-dependent). Drying is explicitly a key step to reach required moisture levels. [2]
• Procurement Impact: If your plant sees caking, inconsistent hydration, or “dusty” handling losses, the root cause can be packaging barrier, post-dryer moisture pickup, or inadequate screening/metal detection. This is the node where small process lapses create large downstream waste.

5. Logistics & Distribution (Ambient, But Not Risk-Free)

• Insight: TVP is easier than refrigerated proteins, but it is still vulnerable to moisture ingress, odor taint, and infestation risk in dry freight.
• Data: Dry TVP is shipped and stored as ambient dry goods; moisture control is central to maintaining quality and preventing quality degradation.
• Procurement Impact: Physical handling (liner quality, pallet wrap integrity, container condition) can be as important as the ingredient itself for avoiding caking and off-odors—especially for long ocean transits or humid lanes.

Product-Level Cost Breakdown

A) Standard Soy TVP (Defatted Flour-Based, Dry Granules)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Upstream Raw Material (soybeans/origination)	25–40%	Depends on soybean complex and whether IP/non-GMO segregation is required.
Primary Processing (defatting + milling to flour/grits)	15–25%	Yield, plant utilization, energy, and desolventizing/toasting operations shape unit cost.
Secondary Processing (extrusion + drying + screening)	20–30%	Utilities (steam/electricity), dryer load, wear parts, and fines/off-spec losses dominate.
Packaging & QA	5–10%	Moisture barrier liners, metal detection/sieving, micro testing, release controls.
Logistics & Distribution	5–12%	Ambient freight; risk costs tied to moisture/odor exposure and handling damage.
Wholesale/Distributor Margin	5–15%	Varies by channel, pack format, and service model.

B) Premium/Functional Soy TVP (SPC/SPI Blend, Low Dust, Tighter Specs)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Upstream Raw Material	20–35%	Same crop base, but higher sensitivity to segregation if specialty claims apply.
Primary Processing (SPC/SPI production)	25–40%	Additional extraction/separation and drying steps increase conversion cost; yield is process-dependent (often discussed around ~75% for SPC from defatted flakes). [3]
Secondary Processing (extrusion + drying)	15–25%	Often optimized for consistency (lower fines, tighter bulk density targets).
Packaging & QA	6–12%	More frequent testing/COA requirements and tighter foreign material controls.
Logistics & Distribution	5–10%	Similar ambient profile; higher cost impact if product is damaged/out-of-spec.
Wholesale/Distributor Margin	5–15%	Often higher service expectations (documentation, traceability).

C) Pea TVP (Pea Protein/Flour Base, Dry Textures)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Upstream Raw Material (peas/origination)	25–45%	Sensitive to regional crop quality and protein fraction availability.
Primary Processing (pea fractionation to protein/flour)	20–35%	Dry vs wet fractionation route drives energy/water and yield profile (supplier-specific).
Secondary Processing (extrusion + drying)	15–30%	Process tuning required to hit texture targets; yield losses can be higher early in scale-up.
Packaging & QA	5–10%	Similar moisture/foreign material controls as soy TVP.
Logistics & Distribution	5–12%	Ambient, but odor/moisture exposure still matters.
Wholesale/Distributor Margin	5–15%	Channel-dependent.

3) Structural Realities You Can’t Negotiate Away (But You Can Design Around)

Insight: TVP behaves like a “capacity-and-spec engineered” ingredient, not a simple commodity. Structural constraints come from (1) linked economics to the oilseed/protein base, (2) extrusion/drying bottlenecks, and (3) quality systems that must be built into the physical process.

Data (validated): Low-moisture extrusion outcomes are highly dependent on process variables, and changing these variables changes functional properties (water absorption, expansion, texture). [7]

Procurement Impact: If you treat TVP as interchangeable, you’ll underestimate qualification time, overestimate substitutability, and misdiagnose plant issues (hydration variance, yield loss, sensory drift).

• Structural Fact #1 (Linked-product dependence): Soy TVP is downstream of the soybean crushing complex (oil removal + meal/flour streams). Even if your spec is “protein-focused,” the physical chain is influenced by crushing operations and the quality of defatted inputs. [8]
• Structural Fact #2 (Extrusion + drying is the gating asset): Extrusion lines and dryers have hard throughput ceilings; shape/size changes and tighter specs increase changeover time and yield loss (fines), effectively reducing available capacity for certain grades.
• Structural Fact #3 (Shelf-stability is a moisture-control system): Dry TVP stability is a function of moisture/water activity control plus packaging integrity. If moisture creeps up post-dryer (humid air, poor liners, container sweat), you can see caking and inconsistent rehydration—even when the formulation is unchanged.

Key Insights (What You Should Remember Before You Even Talk Commercials)

Insight: TVP cost and performance are “manufactured outcomes” shaped by base material choice (defatted flour vs SPC/SPI), extrusion conditions, and moisture-control discipline.

Data (validated): Industry and academic references describe dry TVP as typically produced via low-moisture extrusion; moisture regime and processing settings materially change structure and functional metrics like water absorption capacity. [1]

Procurement Impact: When you review specs or approve alternates, focus on the physical levers that drive plant outcomes: (1) base material pathway, (2) particle size/bulk density + fines, (3) moisture (and where possible water activity) targets and packaging barrier, and (4) micro/foreign material controls aligned to your application.

Key Takeaways: TVP is a conversion chain; extrusion + drying is often the bottleneck; and “equivalent” only exists when the same base-material pathway and the same functional spec envelope are truly matched.

4) The Bottom Line for Your Next Contract

(Analyzed at: May, 2026) The market signal right now is mixed demand in plant-based, but persistent operational volatility in logistics and manufacturing—meaning your biggest avoidable cost is still qualification failure (line downtime, yield loss, rework), not a missed penny on unit price. [4]

In your next TVP contract, require a substitution-ready technical definition (base-material pathway + particle size/fines + moisture max / packaging barrier + a simple hydration performance test) and pre-approve at least one alternate grade/supplier under that same envelope. This works because it targets the true failure nodes—extrusion/drying variability and post-dryer moisture pickup—where “equivalent on paper” most often breaks. Teams that do this typically protect low-to-mid single-digit total cost by avoiding the expensive stuff: emergency buys, rejected lots, and production instability when the incumbent allocates or drifts.

References

1. pmc.ncbi.nlm.nih.gov
2. ametheus.com
3. sciencedirect.com
4. foodbusinessnews.net
5. aocs.org
6. pmc.ncbi.nlm.nih.gov
7. pmc.ncbi.nlm.nih.gov
8. epa.gov (PDF)
