Procurement teams tend to treat soy protein concentrate (SPC) like “soybean complex + freight.” In practice, SPC behaves more like a conversion network with two hard bottlenecks (solvent handling + drying) that set the floor cost and the true surge-capacity limits. This guide maps the physical flow and shows where cost sticks—so you can negotiate, qualify alternates, and govern specs with fewer surprises.

Executive Summary

• Two fixed-cost anchors dominate: hexane-based oil extraction to make white flakes and the SPC wash + desolventizing/drying step; these nodes constrain surge capacity more than soybean availability alone. [1]
• SPC is typically ~65–70% protein (dry basis) and is commonly produced by removing soluble carbohydrates from defatted flakes using aqueous alcohol (or acid/water) plus drying. [1]
• Identity-preserved/non-GMO/traceable programs behave like a parallel supply chain with fewer substitution options and higher hold/clean-down risk. [2]
• Logistics risk remains volatile into 2026 (containers/route reliability), so lead-time variance often shows up as inventory and expediting cost—not just higher freight. [3]

1) The Physical Map You’re Actually Buying (Flow + Fixed Cost Anchors)

Soy protein concentrate (SPC) is not a single “commodity hop.” It’s a downstream conversion chain built on (1) soybean segregation choices (commodity vs IP/non-GMO), (2) solvent-based oil extraction that creates the low-fat feedstock, and (3) a second extraction/wash-and-dry system that strips sugars to reach concentrate specs. Those two solvent-handling steps (hexane at crush; commonly aqueous ethanol or acid/water at SPC) hard-wire major fixed costs: safety systems, solvent recovery, energy for desolventizing/drying, and QA controls. [4]

Insight: SPC supply is physically constrained by a relatively small number of qualified plants and by the need for consistent “white flake” feedstock; the chain is less flexible than soybean meal.

Data: Typical SPC protein is ~65–70% (dry basis), produced from defatted flakes via carbohydrate removal (often aqueous alcohol washing) followed by desolventizing and drying. [1]

Procurement Impact: Your landed cost and service risk are largely “locked in” by two nodes—crush/extraction and concentrate manufacturing—long before packaging or freight.

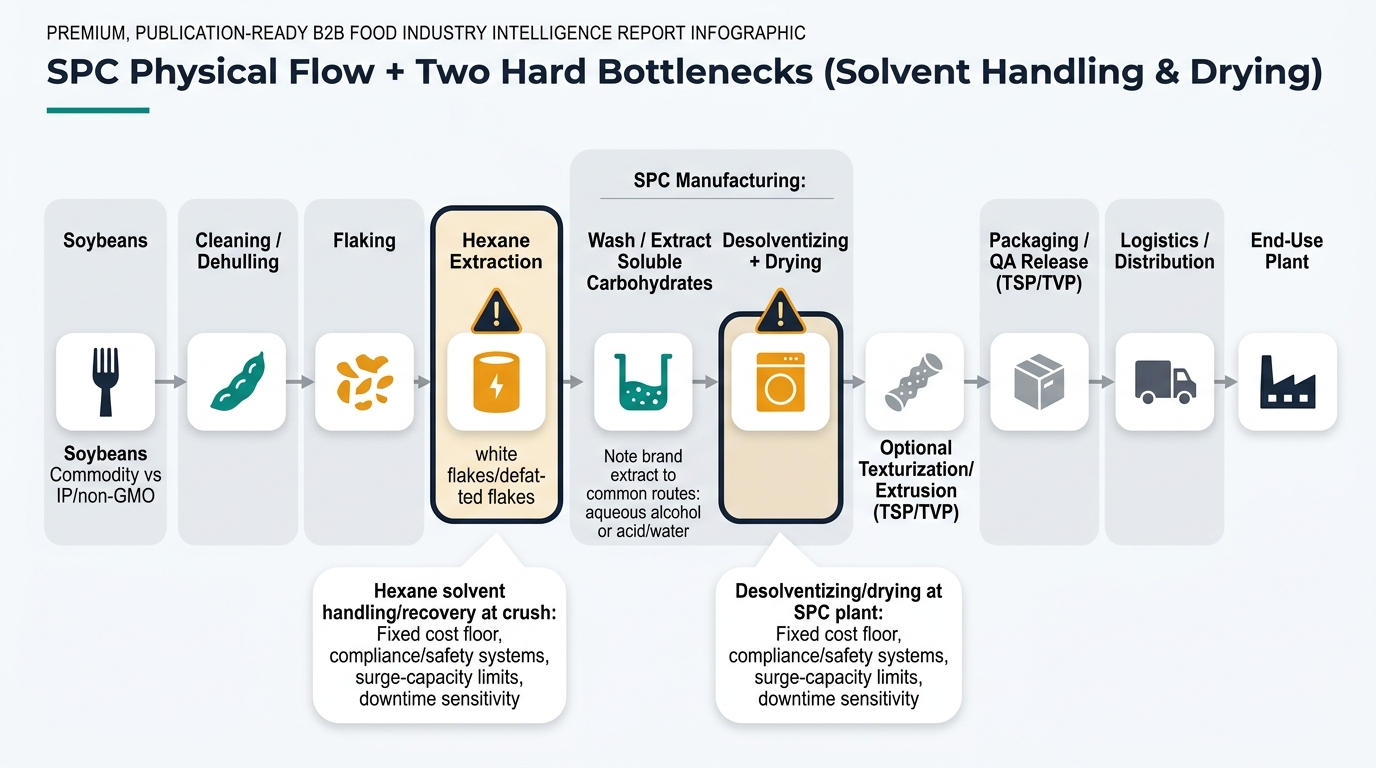

Flow (high level): Soybeans (commodity or segregated) → cleaning/dehulling → flaking + hexane extraction (white flakes/defatted meal) → SPC manufacturing (wash/extract soluble sugars + desolventize/dry) → optional texturization (extrusion into TSP/TVP) → packaging/QA release → containerized or domestic distribution → end-use plants. [4]

2) Where Cost and Margin Accumulate (Node-by-Node Ground Truth)

Insight: SPC cost is a stacked conversion margin on top of soybean complex economics, but the “non-negotiables” are physical: segregation losses, solvent recovery performance, and drying energy.

Data: The chain contains two major unit-ops with high utilities and compliance burden: (1) hexane oil extraction to make defatted flakes and (2) SPC extraction/leaching plus desolventizing/drying. [4]

Procurement Impact: When you see SPC price differences across origins/suppliers, the first question is usually “which physical node is structurally different?” (feedstock stream, plant energy intensity, solvent system, or QA/certification overhead).

1. Upstream / Raw Material (Soybeans + Segregation Programs)

• Insight: The first cost “fork” is not processing—it’s whether you’re buying a segregated soybean stream (non-GMO/IP/deforestation-verified) or commodity beans.
• Data: Segregation typically adds parallel handling (dedicated storage, cleaning, testing, chain-of-custody documentation) and increases shrink/reject exposure versus commingled flows.
• Procurement Impact: Even if SPC is bought on a delivered basis, premiums and availability constraints often originate here; the practical limiter is the integrity of the segregation program, not just farm output.

2. Primary Processing (Crush: Dehulling, Flaking, Hexane Extraction)

• Insight: SPC manufacturing depends on consistent low-fat feedstock (often “white flakes”/defatted flakes). Crush plants are optimized for oil + meal economics, so ingredient-grade flake quality is a specialized output. [4]
• Data: Solvent extraction requires explosion-proof equipment, solvent recovery, and desolventizing; variable dehulling efficiency and residual oil can change downstream functional performance.
• Procurement Impact: Variability here shows up later as functional drift (water absorption, dispersibility, flavor) and can increase your internal conversion cost (rework, yield loss) even if the COA “passes.”

3. Secondary Processing (SPC Manufacturing: Carbohydrate Removal + Drying)

• Insight: This is the true “value-add” node: removing soluble carbohydrates (commonly via aqueous alcohol; also acid/water or other routes) and then drying to a stable ingredient is energy- and controls-intensive. [4]
• Data: Key cost drivers are utilities (steam/thermal for desolventizing and drying), solvent make-up and loss, recovery system efficiency, and yield (protein recovery vs carbohydrate removal). Micro and residual-solvent requirements add QA hold time and lab burden.
• Procurement Impact: When supply tightens, it’s often because this node is capacity- or uptime-limited (dryer bottlenecks, solvent system maintenance, safety-driven shutdowns). That’s why “qualified alternates” are fewer than the soybean map implies.

4. Downstream Conversion (Optional: Texturization/Extrusion into TSP/TVP)

• Insight: Textured SPC (TSP/TVP-style granules/chunks) adds a second manufacturing margin and a second set of performance risks (density, hydration time, bite/structure).
• Data: Extrusion is power-intensive and sensitive to feed moisture, particle size distribution, and thermal profile; post-extrusion drying and sizing create additional yield loss (fines) and QA steps.
• Procurement Impact: If you buy textured forms, you’re buying a “process outcome,” not just protein %. Small process shifts can change your line behavior (hydration, mixing torque, cook loss).

5. Packaging, QA Release, and Lot Control

• Insight: SPC is ambient, but it’s not forgiving: moisture pickup, caking, oxidation/off-notes, and micro risk are managed here through packaging choice and release discipline.
• Data: Common formats are 20–25 kg bags and bulk formats (e.g., FIBCs) depending on channel; critical controls include moisture/water activity, micro limits, residual solvent, allergen statements, and foreign material control (sieving, magnets, metal detection). [5]
• Procurement Impact: Packaging and release practices can be the difference between stable performance and chronic “powder handling” incidents—especially when you warehouse longer to buffer supply.

6. Logistics & Distribution (Domestic + Export)

• Insight: SPC logistics are “dry freight,” but service risk clusters around containers, port reliability, and inland drayage—plus the reality that powders punish poor humidity control.
• Data: Most international moves are containerized; typical failure modes include delayed sailings, customs/document holds, pallet damage, and moisture ingress leading to caking.
• Procurement Impact: Lead time variability is often a physical logistics issue rather than a production issue; when it happens, the cost shows up as expediting, safety stock, and line scheduling disruption.

Product-Level Cost Breakdown

A) SPC Powder (Food-Grade, Standard Functional)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material (soybeans + segregation, if any)	35%	Commodity vs non-GMO/IP premiums originate here; shrink/testing adds cost.
Primary Processing (crush/extraction to flakes/meal)	15%	Solvent extraction, dehulling efficiency, and feedstock consistency.
Secondary Processing (SPC extraction + drying)	25%	Utilities + solvent recovery + yield; major fixed-cost anchor.
Packaging & QA release	8%	Bags/FIBC, lot control, micro/residual solvent testing, holds.
Logistics & Distribution	10%	Inland + ocean (if imported), warehousing, damage/moisture risk.
Channel/Converter Margin	7%	Distributor/blender margin where applicable.

B) SPC Powder (Non-GMO / Identity-Preserved)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material (IP/non-GMO beans + program costs)	45%	Segregation, testing, chain-of-custody, and limited origination pools.
Primary Processing (segregated crush stream)	15%	Dedicated scheduling/clean-down and traceability overhead can add cost.
Secondary Processing (SPC extraction + drying)	22%	Similar unit-ops, but yield loss/holds can increase with tighter controls.
Packaging & QA release	8%	More documentation and claim substantiation burden.
Logistics & Distribution	7%	Similar physical freight, but fewer flexible lanes/sources.
Channel/Converter Margin	3%	Often shorter channels/direct where programs are tightly controlled.

C) Textured SPC (TSP/TVP-Style)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material	30%	Same upstream drivers; sometimes broader acceptance of feedstock.
Primary Processing	12%	Feedstock consistency still matters for extrusion stability.
Secondary Processing (SPC manufacturing)	18%	Concentrate step remains a major cost block.
Texturization/Extrusion + post-drying/sizing	18%	Power, throughput, fines loss, and extra QA.
Packaging & QA release	10%	Bulk formats common; physical integrity and foreign material control.
Logistics & Distribution	8%	Cube efficiency and damage risk differ vs powder.
Channel/Converter Margin	4%	Additional conversion margin often sits with the texturizer.

3) Structural Realities That Don’t Change (Even When Markets Do)

Reality 1: Two solvent systems create hard capacity limits

Insight: SPC is constrained by solvent-handling and drying equipment, not by soybean availability alone.

Data: The chain relies on hexane extraction upstream and a second extraction + drying system downstream; both require high-compliance operations, maintenance shutdowns, and safety-driven throughput limits. [4]

Procurement Impact: When a plant goes down, replacement volumes are not “plug-and-play” because the substitute must match both spec and process route (and often certification).

Reality 2: “Protein %” is not the spec that protects your plant

Insight: SPC performance is a bundle of functional and hygiene attributes that are created (or lost) in processing.

Data: Buyers commonly manage moisture/water activity, microbiological limits, residual solvent, particle size distribution, flavor/odor, and application-specific functionality (dispersibility, viscosity, gelation).

Procurement Impact: The cost of a marginal lot is paid inside your operation—mixing instability, texture defects, filtration fouling, or rework—so COA-only acceptance can be structurally expensive.

Reality 3: Segregated claims behave like a separate supply chain

Insight: Non-GMO/IP/traceable SPC is not just “standard SPC plus paperwork”; it’s a parallel physical flow with fewer degrees of freedom.

Data: Segregation requires dedicated origination, storage, scheduling, clean-down, and repeated testing across nodes; each step increases the probability of delay or hold.

Procurement Impact: Availability risk is structurally higher for segregated programs, and the premium is often driven by throughput loss and documentation burden—not just raw bean price.

Key Insights (What to Remember When You Look at Any SPC Offer)

• Insight: The largest fixed-cost anchors sit at solvent extraction and drying steps; everything else is secondary.
  Data: Crush (hexane extraction) and SPC manufacturing (extraction/leaching + desolventize/dry) are the two capital- and utilities-intensive nodes that set the floor cost and constrain surge capacity. [4]
  Procurement Impact: Supplier differences that matter most usually trace to plant design/uptime, solvent recovery efficiency, and QA release discipline—not to packaging or freight alone.
• Insight: Product form changes the cost stack.
  Data: Textured SPC adds extrusion, post-drying, sizing, and more yield loss (fines), creating a distinct conversion margin.
  Procurement Impact: Treat textured forms as a different supply chain with different failure modes (structure/hydration), not a simple extension of powder buying.
• Insight: Segregated claims are a physical constraint.
  Data: IP/non-GMO programs require parallel handling and testing across nodes, which reduces flexibility.
  Procurement Impact: Plan for fewer substitution options and longer recovery time from disruptions when claims are non-negotiable.

The Bottom Line for Your Next Contract

(Analyzed at: Jun, 2026)

Write your next SPC agreement around the two structural bottlenecks: (1) secure qualified secondary-processing capacity (wash + desolventize/dry) with explicit uptime/maintenance visibility, and (2) lock in the right flake/feedstock pathway (commodity vs IP/traceable) with documented chain-of-custody. This works because SPC capacity is constrained by solvent-handling and drying, not just soybean availability, and 2026 logistics volatility can still turn “available product” into “late product.” [4] If you don’t contract those constraints directly, the cost tends to reappear as expediting, extra safety stock, and avoidable line disruption—often a mid-single-digit total landed cost hit over a year even when the unit price looks competitive.
