Dehydrated red onion flakes look like a simple dry commodity, but procurement outcomes are largely determined by a few “physics” points: usable dry matter yield from stored onions, dehydration throughput/energy, post-dry cleaning/sorting intensity, and keeping the product dry all the way to your warehouse. This guide maps the real flow and highlights where buyers can (and cannot) influence landed cost, continuity, and claims risk.

Executive Summary

• Cost locks in at three pinch points: usable dry matter yield after curing/storage, dryer utilization/energy, and post-dry sorting + barrier packaging.
• Moisture targets are real and common: many commercial specs for flakes cluster around ~5–6% max moisture, but the bigger risk is re-absorption after drying if the “dry chain” breaks.
• Tighter specs = intentional yield loss: aggressive foreign-matter and appearance control usually increases rejects/fines, raising conversion cost but reducing downstream operational risk.
• Trade policy still matters (Jun 2026): India has recently cycled through onion export controls; restrictions were withdrawn effective April 1, 2025, but policy volatility remains a planning input for global buyers.

1) The Physical Map: Where Dehydrated Red Onion Flakes “Lock In” Cost

Dehydrated red onion flakes are a two-step physical system: (1) a seasonal fresh-onion agricultural flow that determines yield, color potential, and defect load; and (2) an energy- and throughput-constrained dehydration and sorting system that converts that crop into a stable, humidity-sensitive dry ingredient. The fixed cost-drivers are concentrated in dehydration energy/utilization, sorting/foreign-matter control, and high-barrier packaging that protects low-moisture product from re-absorbing water.

Insight: The supply chain is built around converting a bulky, perishable, variable raw onion into a low-moisture, spec-defined flake where most value is created by moisture removal + defect removal.

Data: Dried onions are traded under HS 071220 (“Onions, dried, whether or not cut, crushed or powdered, but not further prepared”). [1]

Procurement Impact: Your “landed reality” is shaped less by distance and more by what happens at three physical pinch points: raw onion curing/storage quality, dryer utilization/energy, and post-dry sorting + moisture-barrier packing.

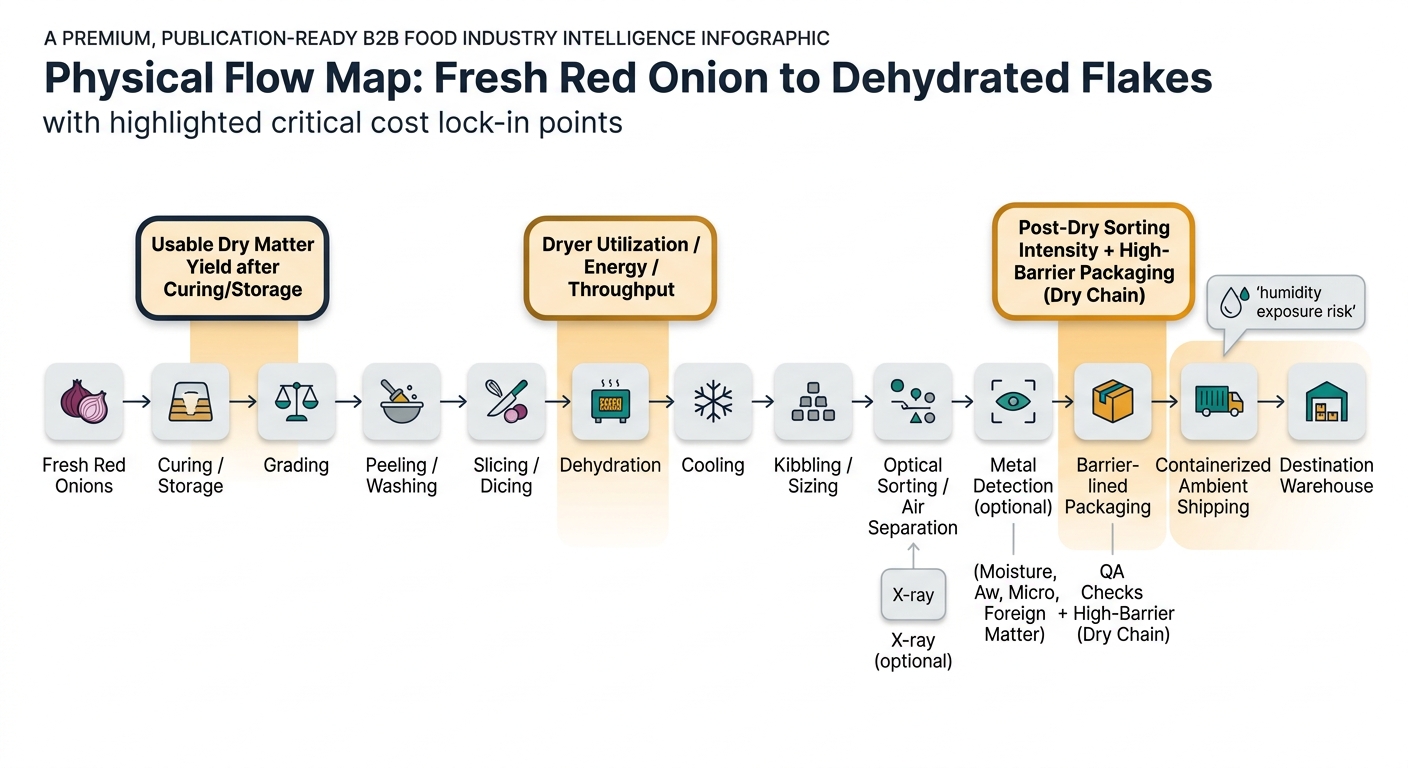

Typical physical flow (simplified):

• Upstream: Fresh red onions → curing/storage → grading
• Primary processing: peeling/washing → slicing/dicing → dehydration → cooling
• Secondary processing: kibbling/sizing (flake cut) → optical sorting/metal detection → blending/standardization (if used)
• Packaging & QA: moisture/aw checks → micro/foreign matter checks → barrier-lined bags/cartons
• Logistics: containerized ambient shipping (humidity exposure is the real enemy)

2) Per-Node Cost and Margin Structure (What Each Node Physically Adds)

Insight: Costs do not accumulate evenly; they step-change at (a) raw onion yield/defect rate, (b) dehydration energy and plant utilization, and (c) sorting + packaging required to meet foreign-matter and moisture stability expectations.

Data: Typical commercial process flows for dehydrated onion describe grading/peeling, washing, slicing, drying, then kibbling/sorting steps (including blowers/air separation and metal detection) before packing—reflecting how much value is created after drying in “making it clean and uniform.” [2]

Procurement Impact: When you see cost moves or availability constraints, the first “physical suspects” are: raw onion dry matter/rot (yield), dryer bottlenecks (throughput), and the intensity of sorting/QA (industrial/export-grade expectations).

1. Upstream / Raw Material (Farming, Curing, Storage)

• Insight: The processor’s true raw material cost is not “price per ton of onions,” but “cost per unit of usable dry matter” after curing/storage losses and defect trimming.
• Data: Onion dehydration performance and quality (including browning/color outcomes) are affected by time/temperature and moisture removal dynamics; cultivar and pre-processing conditions influence what the dryer must correct later. [3]
• Procurement Impact: This node sets the ceiling on finished flake color and the floor on yield. Lots with higher rot/softness increase trimming waste and raise the conversion cost downstream even if farmgate onion prices look attractive.

2. Primary Processing (Peeling, Cutting, Dehydration, Cooling)

• Insight: Dehydration is the conversion engine and the largest fixed-cost absorber: energy + dryer utilization + labor for prep (peel/trim/cut) dominate.
• Data: Industrial dehydration commonly uses hot-air drying approaches; literature and industrial practice emphasize staged drying conditions because speeding up drying can create quality trade-offs (e.g., color/thermal damage) and uneven moisture profiles. [3]
• Procurement Impact: Capacity constraints show up here first. If dryer time is extended to protect color (avoid browning) or to hit tighter moisture/aw targets, throughput drops—raising per-kg conversion cost even if upstream onions are stable.

3. Secondary Processing (Kibbling, Sizing, Sorting, Metal Detection)

• Insight: “Making flakes” is not just cutting; it is classification (size/mesh), removal of skins/roots, and foreign-matter control—often the difference between commodity-grade and industrial-grade acceptance.
• Data: Common plant flows include separation steps (e.g., blowers/air separation), sorting, and metal detection after kibbling, and many industrial dry-ingredient plants use layered foreign material controls (metal detection and/or X-ray depending on the hazard plan). [2]
• Procurement Impact: Tight cut-size distribution and aggressive defect removal increase yield loss (more fines, more rejects) but reduce downstream line issues (sifting, rework, customer complaints). This node is where “spec tightness” becomes real cost.

4. Packaging & QA (Barrier Protection + Release Testing)

• Insight: Dehydrated onion flakes are shelf-stable but not moisture-stable; packaging is a functional part of the process because flakes readily pick up humidity, leading to caking and potential out-of-spec moisture/water activity.
• Data: Many commercial specifications for dehydrated onion flakes commonly cite moisture limits around 5–6% max, and export/packaging guidance emphasizes moisture protection to preserve shelf life. [4]
• Procurement Impact: Barrier liners, sealing discipline, and post-dry cooling before packing are cost items that protect against claims and rejections. If packaging is downgraded, you can “save cents” while creating expensive failures (caking, clumps, re-sieving, holds).

5. Logistics & Distribution (Ambient, Containerized, Humidity-Exposed)

• Insight: Logistics cost is not only freight; it’s the probability-weighted cost of humidity exposure and time-in-transit for a hygroscopic product.
• Data: Dried onions are traded as dried/cut/crushed/powdered under HS 071220 and are typically shipped as ambient dry goods—meaning moisture protection depends on packaging, container condition, and warehouse controls rather than refrigeration. [1]
• Procurement Impact: The physical control point is container hygiene + liner integrity + desiccation practices (when used) + warehouse humidity control. Logistics failures often present as “quality” issues (caking, odor pickup) rather than visible damage.

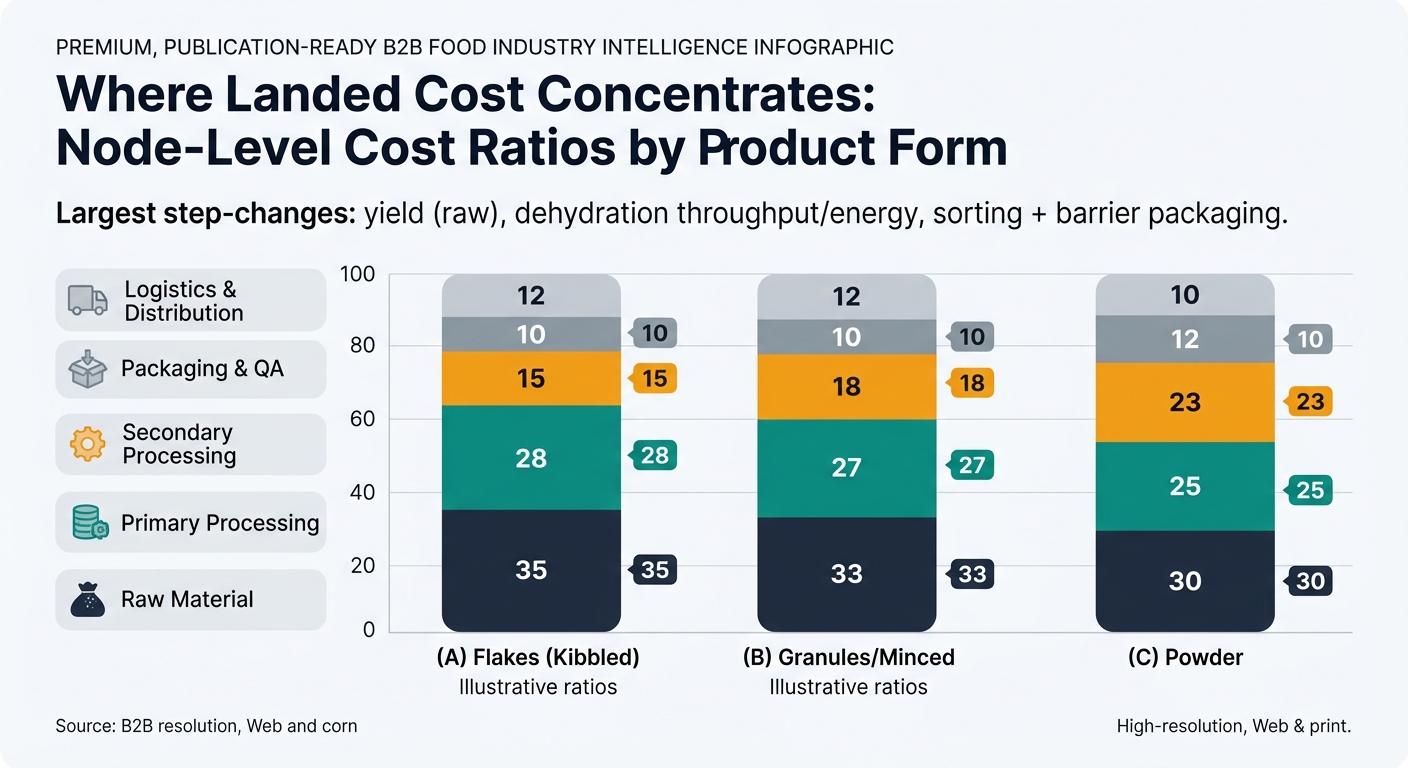

Product-Level Cost Breakdown (Illustrative Ratios)

A) Dehydrated Red Onion Flakes (Kibbled)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material (fresh onions + storage losses)	35%	Driven by usable dry matter yield and defect rate post-curing.
Primary Processing (prep + dehydration energy/utilization)	28%	Energy-intensive drying and throughput constraints dominate.
Secondary Processing (kibbling/sizing/sorting/metal detection)	15%	Yield loss from rejects/fines vs. cleanliness and uniformity.
Packaging & QA	10%	Barrier liners, sealing discipline, and release testing protect stability.
Logistics & Distribution	12%	Freight + humidity risk management + handling.

B) Dehydrated Red Onion Granules/Minced (More Sizing Control)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material	33%	Similar raw driver, but more sensitivity to fines generation.
Primary Processing	27%	Drying remains the conversion engine.
Secondary Processing	18%	More screening/classification to hit granule size bands.
Packaging & QA	10%	Similar moisture protection requirements.
Logistics & Distribution	12%	Similar shipping profile.

C) Dehydrated Red Onion Powder (Milled)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material	30%	Often uses flakes/fines streams; yield depends on upstream sorting losses.
Primary Processing	25%	Drying cost embedded if produced from dried intermediates.
Secondary Processing (milling + sieving + dust control)	23%	Milling energy, throughput, and tighter particle size control add cost.
Packaging & QA	12%	Higher caking risk; packaging discipline becomes more critical.
Logistics & Distribution	10%	Slightly denser product; still humidity-sensitive.

3) Structural Facts Every Buyer Should Treat as “Non-Negotiable Physics”

Reality 1: Dehydration is a capacity business, not just an agriculture business

Insight: Even with abundant onions, finished supply can tighten if dryer throughput or energy availability becomes the bottleneck.

Data: Drying is fundamentally a heat-and-mass-transfer constraint; technical literature and industrial practice emphasize staged conditions to manage quality, which implies real throughput limits when specs tighten. [3]

Procurement Impact: Availability and lead times are structurally linked to plant utilization; this is why some origins can have onions but still struggle to deliver tight specs at volume.

Reality 2: “Low moisture” is not the same as “stable”—humidity control is a supply chain responsibility

Insight: Flakes are hygroscopic; stability depends on packaging integrity and humidity exposure from packing room to destination warehouse.

Data: Specs frequently cap moisture for flakes around ~5–6% max, and packaging guidance emphasizes moisture protection to preserve shelf life (the “dry chain” concept). [4]

Procurement Impact: Quality incidents frequently originate after processing (packing, transit, storage). This is why the same supplier can look “variable” if downstream handling differs by lane/warehouse.

Reality 3: “Clean, uniform flakes” require intentional yield loss

Insight: The cleaner and more uniform the flake (color, cut, defect removal), the more material is rejected as skins/roots/fines—so the plant’s effective yield drops.

Data: Standard commercial flows include multiple separation/sorting steps and metal detection, reflecting that “cleaning” is a designed process step, not a quick check. [2]

Procurement Impact: There is a structural trade: tighter foreign-matter and appearance specs increase conversion cost and can constrain supply, but reduce downstream operational risk (holds, re-sieving, complaints).

Key Insights (What to Remember Before You Read Any “Strategy”)

• Insight: Most of the “value add” is physical: removing water without browning, then removing defects without destroying yield.

  Data: Industry process flows repeatedly emphasize grading/peeling, drying, cooling, then kibbling and multi-step separation/sorting before packing—where plants spend capex and labor to meet industrial expectations. [2]

  Procurement Impact: When you evaluate suppliers or lots, the most predictive questions are operational: curing/storage discipline, dryer design/utilization, sorting stack (optical/metal/X-ray as applicable), and packaging barrier integrity.

• Insight: Moisture control is an end-to-end system, not a lab number.

  Data: Typical specs cite low moisture limits (e.g., ~5–6% max for flakes) and packaging research notes moisture exchange as a core driver of quality loss in dehydrated alliums. [4]

  Procurement Impact: A “good COA” can be defeated by poor packing-room cooling, weak liners, or humid warehousing—so physical handling requirements matter as much as the spec itself.

The Bottom Line for Your Next Contract

(Analyzed at: Jun, 2026) India has recently moved back toward “free export” conditions for fresh onions (e.g., withdrawal of a 20% export duty effective April 1, 2025), but the broader pattern is still policy whiplash when domestic prices move—so treat origin risk as a live variable, not a one-time qualification exercise. [5]

The highest-conviction move is to contractually define the dry chain: require a high‑barrier inner liner, a documented seal method, and minimum container/warehouse humidity controls (plus a clear claims protocol tied to moisture/aw). This works because flakes can re-absorb humidity after they leave the dryer even when the COA is clean, and the cost of one caking event (rework, disposal, expedited replacement, line disruption) routinely overwhelms the few cents you save by relaxing packaging and handling discipline.
