This guide is written for procurement and sourcing leaders who are strong operators in other categories but newer to lulo (naranjilla) preserves. The goal is to “walk the chain” in physical terms—where perishability turns into specs, where yield is created or lost, and where your landed cost becomes hard to change once production is committed.

Executive Summary

• Two stabilization gates dominate outcomes: lulo becomes a manageable ingredient at pulping/stabilization, and jam becomes a stable consumer product at hot-fill/closure integrity.
• Lulo is an acid fruit system: published pulp/edible-portion data points to high moisture (~91–93%) and soluble solids around ~9 °Brix; acidity drives both preservation advantage and closure/liner compatibility risk. [1]
• US jam/preserves identity anchors solids: US standards reference ≥65% soluble solids for jam/preserves, which makes evaporation time/energy and yield loss structural. [2]
• EU naming can shift formulation economics: the EU jam directive sets a minimum soluble dry matter of 60% for products in scope, affecting cook curve, pectin demand, and batch consistency. [3]
• Packaging is often the biggest non-fruit lever: glass/closure/label lead times and damage risk routinely decide service levels; treat packaging as a governed workstream, not a “buy.” [4]

1) The Ground-Truth Map: Where Cost Gets “Locked In”

Artisanal lulo (naranjilla) jam is physically built around one constraint: lulo is highly perishable at fruit stage, so export-oriented supply chains stabilize it early as frozen pulp or aseptic puree, then convert it into shelf-stable jam closer to demand—or at origin if capabilities exist. The fixed cost-drivers are therefore concentrated in (1) conversion yield and spec control at pulping, (2) thermal process + evaporation energy during jam cooking, and (3) glass packaging + breakage protection in outbound logistics.

• Insight: The chain’s “hard points” are the moments where biology becomes an industrial input (pulping) and where shelf stability is created (hot-fill/hold + seal integrity).
• Data (validated/adjusted): Published work and referenced food composition sources report lulo’s edible portion as very high moisture (~91–93%) and total soluble solids around ~9 °Brix (values vary by cultivar and origin). This explains why concentration energy and cook time are structural cost drivers. [1]
• Procurement Impact: Even before you discuss strategy, the physical map tells you what will dominate landed cost: fruit solids yield, stabilization format (frozen vs aseptic), cooking losses, and packaging density/breakage.

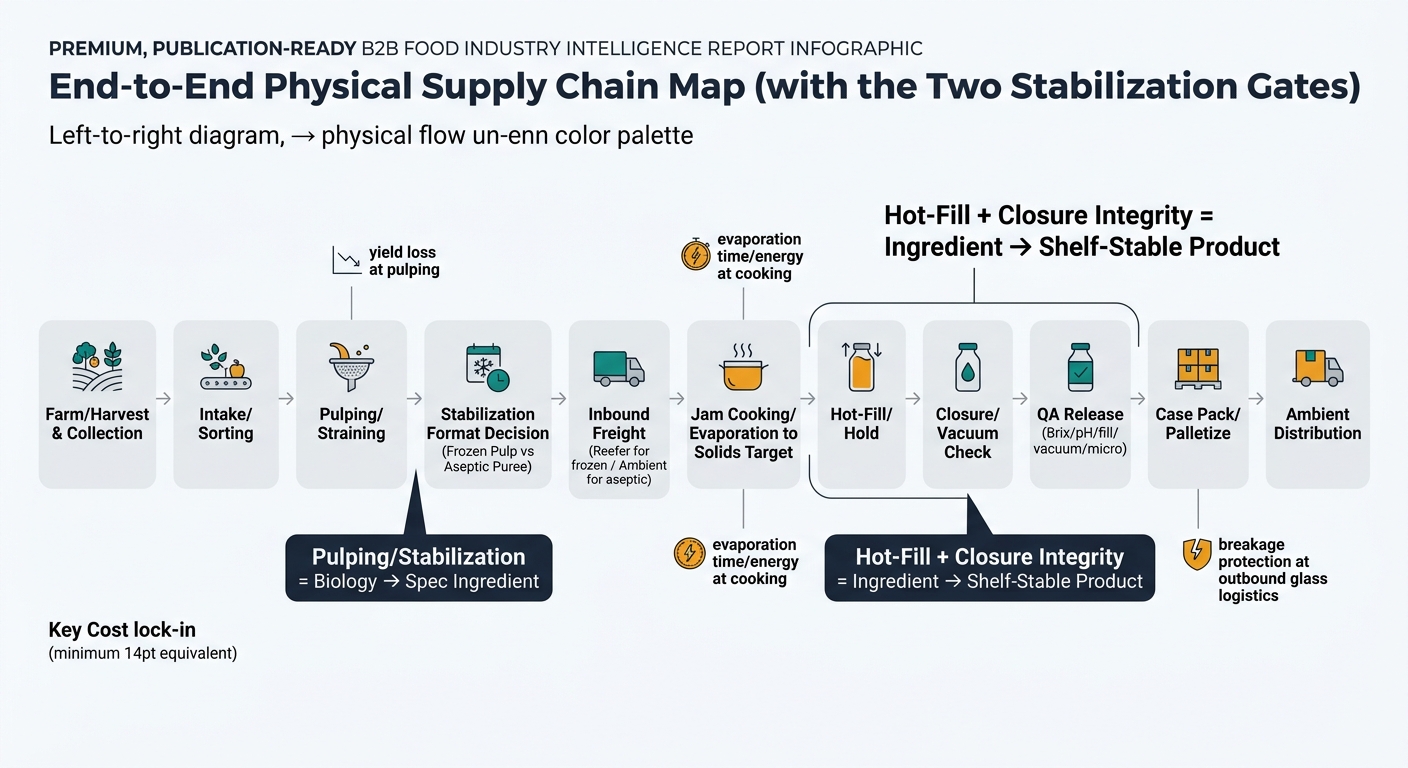

Physical flow (typical export-to-US/EU model): Farm/collection → pulping/standardization (frozen or aseptic) → inbound freight (reefer or ambient) → jam cooking + hot-fill → packaging/QA release → ambient distribution.

2) Cost and Margin Structure by Node (Where Value Is Added vs. Where Cost Accumulates)

Insight: In artisanal lulo jam, margins tend to appear at nodes that control spec consistency (Brix/pH/insolubles), shelf stability (thermal process + closure integrity), and brand-ready packaging (glass + labels)—not at the farmgate.

1. Upstream / Raw Material (Lulo farming + collection)

• Insight: Lulo’s perishability and variability mean the farm node is less about “storage” and more about harvest timing + rapid movement to pulping.
• Data (validated): Lulo is widely used in juices and sweets; published research emphasizes its sour profile and compositional variability across fruit parts and growing conditions. [1]
• Procurement Impact: The physical constraint is loss rate (bruising/oxidation/microbial load) if fruit sits. Cost is structurally tied to manual harvest/handling, rural transport, and rejection at intake.

2. Primary Processing (Pulping/straining + stabilization into frozen pulp or aseptic puree)

• Insight: This is the chain’s first “industrial gate.” Once lulo becomes pulp/puree, the supply chain shifts from fragile fruit to a spec-managed ingredient.
• Data (validated/adjusted): Rather than rely on a single pH/Brix point estimate, treat lulo as an acid fruit with high moisture and low-to-moderate natural soluble solids (commonly reported around ~9 °Brix in referenced sources), meaning downstream concentration is unavoidable. [1]
• Procurement Impact: Fixed cost-drivers are fruit-to-pulp yield, screening/seed removal losses, standardization (Brix/acidity blending), and format choice:

• Frozen pulp: requires continuous cold chain.
• Aseptic puree: shelf-stable in sealed bag-in-box/drum; typical flash heat processing is commonly cited around 90–110°C for seconds to ~1 minute depending on fruit pH/viscosity and process design. [5]

3. Secondary Processing (Jam cooking + hot-fill/hold)

• Insight: Jam manufacturing is a controlled dehydration step: you’re paying to remove water, hit a gel set, and create microbial stability—then “lock it” under vacuum/seal.
• Data (validated): In the US standard of identity for fruit jams/preserves, the finished product’s soluble solids must be ≥65% (as determined by a referenced AOAC refractometer method in the regulation). [2]
• Procurement Impact: The physical drivers of cost are structurally predictable:

• Evaporation energy + time: high-moisture pulp must be concentrated.
• Batch losses: kettle hold-up, foaming control, and line purge.
• Set consistency inputs: pectin/acid balance (especially when fruit solids vary).
• Process capability constraints: hot-fill temperature control, hold time discipline, and fill-weight accuracy (rework is expensive in glass).

4. Packaging & QA Release (glass, closures, labels, coding, and lot integrity)

• Insight: For artisanal jam, packaging is not a “last step”—it’s often the largest non-fruit cost and the main driver of downstream damage risk.
• Data (validated): USDA’s preserves/jams grading framework emphasizes sensory and defect control (color, flavor, freedom from defects) at the finished stage—reflecting how quality is judged after processing and packing, not only at ingredient receipt. [4]
• Procurement Impact: Fixed cost-drivers include glass jar + lug cap, liner compatibility with hot-fill acidity, label lead times, and QA testing (Brix, pH, fill, vacuum, microbiology). Structurally, this node also “creates” traceability: lot coding and retention samples become your audit backbone.

5. Logistics & Distribution (inbound pulp + outbound finished jars)

• Insight: Lulo supply chains pay freight twice: once for stabilized fruit input and again for dense, breakable finished goods.
• Data (validated): Aseptic puree is shipped ambient until opened, while frozen pulp requires frozen handling; this creates two distinct logistics cost structures and risk profiles (reefer capacity/dwell vs ambient damage/temperature abuse after opening). [5]
• Procurement Impact: Fixed drivers are reefer availability and dwell time (for frozen), pack-out and pallet pattern (for glass), and damage/claims management. Breakage isn’t just cost—it disrupts service levels and can trigger lot-level traceability events.

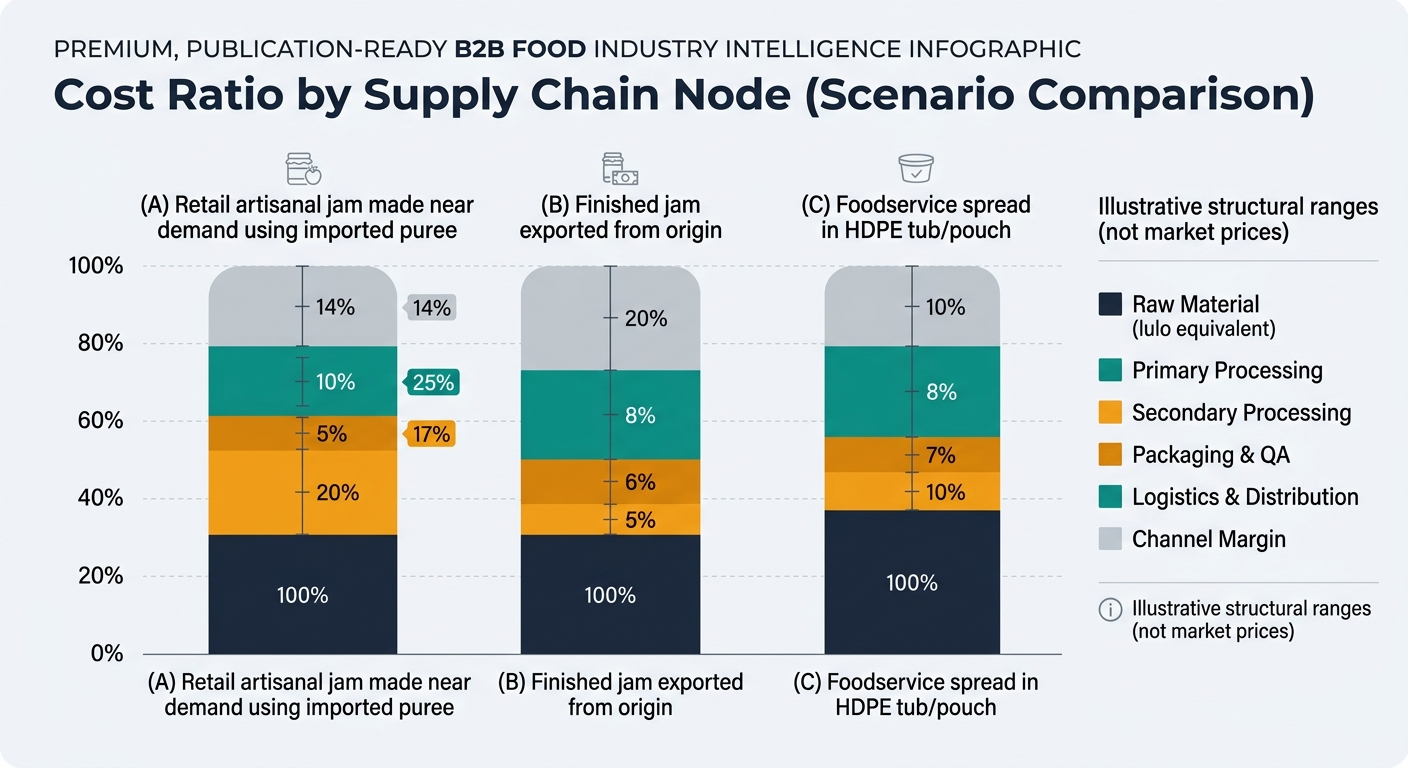

Product-Level Cost Breakdown (Illustrative Ratios)

Insight: Cost ratios shift mainly by (a) whether you import pulp vs finished jam, and (b) pack format (glass retail vs foodservice). The tables below show typical structural weightings (ranges), not market prices.

A) Retail Artisanal Lulo Jam (Glass Jar, made near demand using imported puree)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material (lulo equivalent)	18–30%	Driven by fruit solids yield and puree specs (Brix/pH/insolubles).
Primary Processing (pulping + stabilization)	8–15%	Frozen vs aseptic format changes storage/freight profile.
Secondary Processing (cooking + hot-fill)	12–20%	Evaporation energy/time + batch losses to reach jam solids.
Packaging & QA	22–35%	Glass + closure + labels + QA release often dominates non-fruit costs.
Logistics & Distribution	8–15%	Inbound ingredient freight + outbound glass handling/breakage protection.
Wholesale/Retail Margin	10–25%	Varies widely by channel and brand positioning.

B) Finished Lulo Jam Exported from Origin (Glass Jar, made at/near origin)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material (lulo)	18–30%	Similar biology; farm/collection losses still apply.
Primary + Secondary Processing (integrated)	18–30%	Fewer handoffs, but needs reliable processing/QA infrastructure.
Packaging & QA	22–35%	Glass remains structurally heavy; export labeling adds complexity.
Logistics & Distribution	10–18%	Ocean freight of finished glass increases cube/weight and damage risk.
Import/Distribution Margin	10–20%	Importer/distributor functions may add cost.

C) Foodservice Lulo Fruit Spread (HDPE tub or pouch, lower breakage)

Supply Chain Node	Cost Ratio (% of Final Cost)	Notes
Raw Material (lulo equivalent)	20–35%	Fruit fraction often higher than packaging in non-glass formats.
Primary Processing	8–15%	Same pulp/puree gatekeeping.
Secondary Processing	12–22%	Similar cooking physics; larger batch sizes can reduce unit labor.
Packaging & QA	10–18%	Plastic formats reduce breakage and often reduce unit packaging cost.
Logistics & Distribution	8–14%	Better cube efficiency than glass; less damage.
Channel Margin	10–20%	Foodservice distributor structure differs from retail.

3) Structural Facts (Non-Obvious Realities That Don’t Go Away)

Reality 1: Acid fruit systems help preservation—but force tight closure/liner compatibility

• Insight: Acid fruit systems are friendly to microbial stability, but they are harsh on packaging interfaces if liner materials and hot-fill conditions aren’t matched.
• Data (validated/adjusted): Lulo is consistently described in the literature as a sour/acid fruit, and composition work highlights meaningful organic acid presence; in practice, treat lulo jam as an acid product where closure system performance matters. [1]
• Procurement Impact: You can’t treat “jar + cap” as generic. Seal integrity, vacuum retention, and liner compatibility are structural quality determinants (leakers become safety/recall and brand events).

Reality 2: Jam is a dehydration process; yield loss is structural, not an operator error

• Insight: With high-moisture pulp, reaching jam solids necessarily means boiling off water; that creates unavoidable mass loss and energy/time cost.
• Data (validated): Lulo’s edible portion is reported at ~91–93% moisture, while US jam/preserves identity references ≥65% soluble solids in the finished product—so concentration is not optional. [1] [2]
• Procurement Impact: The physical math drives throughput: kettle capacity, boil rate, and line scheduling are hard constraints. If you scale volume, your bottleneck is often evaporation minutes, not filling speed.

Reality 3: Definitions and naming can force formulation boundaries (US vs EU)

• Insight: “Jam” is not always just a marketing word; in some markets it is a defined category with compositional requirements.
• Data (validated): The EU jam directive sets a minimum soluble dry matter content of 60% for products in scope; the US has standards of identity for fruit preserves and jams with ≥65% soluble solids referenced. [3] [2]
• Procurement Impact: Even before strategy, the physical implication is real: minimum solids/fruit-content rules can change fruit load, cook curve, pectin demand, and batch consistency—which then changes cost at the cooking and packaging nodes.

Key Insights (What to Remember When You “Walk the Chain”)

• Insight: The artisanal lulo jam supply chain is best understood as two stabilization gates: pulping (biological → ingredient) and hot-fill sealing (ingredient → shelf-stable consumer good).
• Data (validated): Lulo’s high moisture and low-to-moderate natural soluble solids explain why concentration energy and solids targets dominate manufacturing physics; US jam/preserves identity references ≥65% soluble solids. [1] [2]
• Procurement Impact: If you want predictable cost and quality, you must physically focus on (1) pulp spec control (Brix/pH/insolubles), (2) cooking yield/evaporation constraints, and (3) packaging system integrity (jar/cap/liner + breakage protection).

4) The Bottom Line for Your Next Contract

(Analyzed at: Jun, 2026) If you do one thing this cycle, separate your contract into two governed “hard-spec” workstreams: (1) a lulo puree/pulp spec with acceptance ranges (Brix, pH/acid, insolubles/seed, micro/COA rules, lot traceability), and (2) a closure-system qualification (jar/cap/liner) proven under your hot-fill conditions before you scale. This works because the chain’s biggest avoidable failures still originate at the two gates where variability becomes expensive: ingredient standardization and seal integrity. With pectin pricing still showing volatility signals through 2025–2026 and packaging quality judged at the finished stage, late discovery of spec drift or leakers typically shows up as overweight fills, scrap/rework, and service disruption—often a low-to-mid single-digit share of finished cost that only appears after you’ve already burned capacity and freight. [6]
