Apple juice concentrate (AJC) looks like a “simple” ingredient until you manage it as a category: it’s campaign-produced, inventory-led, and quality risk is amplified by concentration. This guide maps the physical flow and shows where cost and continuity risk are structurally created—so procurement can negotiate and govern what actually moves outcomes.

Executive Summary

• AJC is typically traded around ~70–72°Bx and commonly shipped aseptically in bag-in-drum formats around ~250–275 kg net (many suppliers cite ~260 kg), so harvest-time yield and packaging/logistics decisions lock in cost early.
• U.S. customs references list unconcentrated natural apple juice at ~13.3°Bx, implying a ~5–6x concentration factor to reach ~70°Bx—so you are fundamentally buying “brix solids,” not liquid volume.
• Concentration magnifies food-safety/quality exposure; FDA enforcement guidance uses an action level of 50 ppb patulin measured on single-strength (or reconstituted single-strength for concentrate).
• The biggest controllable levers for procurement are portfolio design (multi-origin/multi-plant), spec governance (what is testable at receipt), and trigger-based contingency activation—not last-minute spot buying.

1) The Physical Map: How AJC Is Built (and Why Costs “Lock In” Early)

Apple juice concentrate (AJC, typically ~70–72°Bx) is a seasonal, campaign-manufactured ingredient: most of the year you’re consuming inventory produced in a short post-harvest window, not “making to order.” The physical chain is simple on paper— apples → juice → concentrate → drums → containers—but the economics are set by three hard constraints: (1) processing-grade apple availability versus the fresh market, (2) plant capacity utilization during a narrow harvest window, and (3) energy-intensive evaporation plus aseptic packaging.

Insight

AJC is a “short-campaign, long-consumption” supply chain—processing and concentration happen in a tight seasonal window, while buyers draw down stock over many months.

Data

Commercial AJC is commonly specified and traded around 70–72°Bx and shipped aseptically in bag-in-drum formats; many commercial references cite ~260 kg net per drum (and it’s common to see ~250–275 kg depending on pack and density).

Procurement Impact

Your landed cost and continuity exposure are structurally shaped by harvest-time fruit solids/yield, evaporation energy, and packaging + container logistics—costs that are difficult to “optimize away” downstream once concentrate is produced.

Supply chain flow (ground truth)

• Upstream: Processing-grade apples (culled/factory apples) sourced during harvest; allocation shifts with fresh-market pull.
• Primary processing: Washing/sorting → milling/pressing → enzymatic treatment → clarification/filtration → microbial control.
• Secondary processing: Vacuum evaporation to high-brix concentrate, often with aroma/essence recovery systems to preserve volatile profile.
• Packaging & QA: Aseptic filling into high-barrier bags inside steel drums/totes; lab verification (brix/acid/color/micro) and authenticity/contaminant screens.
• Logistics & distribution: Containerized ocean freight dominates cross-border trade; warehousing is typically ambient for aseptic product (frozen exists but is less common in global bulk flows).

2) Where the Money Stacks Up: Cost and Margin by Node (Physical + Fixed Drivers)

Insight

AJC costs accumulate in predictable “physics-based” places—fruit solids/yield upstream, energy in evaporation, and packaging + container logistics at shipment.

Data

U.S. customs brix tables list unconcentrated natural apple juice at ~13.3°Bx; moving to ~70°Bx implies roughly a ~5–6x concentration factor (before you account for process losses and spec targets).

Procurement Impact

Small changes in fruit solids, evaporation efficiency, and packaging density can move the cost-per-ton of concentrate more than many downstream handling optimizations.

1. Upstream / Raw Material (Processing-Grade Apples)

• Insight: The single biggest structural lever is not “farm cost per acre,” it’s how many apples get diverted into processing and what their soluble solids (juice yield per ton of fruit) look like.
• Data: Apple juice in U.S. trade averages ~13.3°Bx at single-strength; concentrate targets ~70°Bx, so the chain is fundamentally paying to remove water and ship solids.
• Procurement Impact: When fruit solids are lower (weather, varietal mix, maturity), you buy the same tonnage of apples but get fewer “brix tons” of concentrate—raising conversion cost per finished ton and tightening availability.

2. Primary Processing (Juice Extraction + Clarification)

• Insight: Primary processing cost is driven by throughput during harvest, press efficiency, and clarification/filtration intensity (which is a quality decision, not just a cost line).
• Data: Commercial AJC specs commonly reference clarity/turbidity expectations, acidity/pH ranges, and brix tolerances that require controlled enzymatic treatment and filtration.
• Procurement Impact: If clarification is pushed hard to hit low haze, you can see higher yield loss into pomace/fines and higher consumables cost (enzymes, filter media), but you reduce downstream beverage stability issues.

3. Secondary Processing (Evaporation to ~70–72°Bx + Aroma Handling)

• Insight: Evaporation is where AJC becomes an energy-and-equipment product: steam/electricity, vacuum system efficiency, and fouling/cleaning cycles become dominant fixed drivers.
• Data: Market-standard AJC is frequently sold as “clear aseptic 70/71°Bx” grades; many processors use aroma/essence recovery to manage sensory loss from heat.
• Procurement Impact: This node explains why energy shocks and plant downtime matter: if the evaporator runs below optimal utilization during campaign, fixed costs are spread over fewer tons, increasing per-ton conversion cost.

4. Packaging & QA (Aseptic Bag-in-Drum / Totes)

• Insight: AJC is economically “shippable” because aseptic packaging turns a microbiologically sensitive juice into a shelf-stable industrial input—at the cost of high-barrier bags, sterile filling, drums/totes, and verification testing.
• Data: Concentrates are commonly filled aseptically in steel drums with inner aseptic bags; many market references cite ~250–275 kg net per drum (often ~260 kg).
• Procurement Impact: Packaging is not just materials—it’s also sterility assurance and traceability. Any aseptic breach converts into scrap/claims fast because the product is high-value solids.

5. Logistics & Distribution (Containers, Ports, Warehousing)

• Insight: Logistics cost is dominated by container availability, drayage, and port dwell time because drums are heavy, handling-intensive, and typically move as containerized cargo.
• Data: Aseptic bag-in-drum is a prevalent bulk format for global fruit concentrates; drum net weights in the ~250–275 kg range drive payload planning and handling risk.
• Procurement Impact: Freight volatility hits AJC disproportionately versus lower-brix juice because the product is dense and frequently moved long-distance; small per-kg freight changes scale quickly at container level.

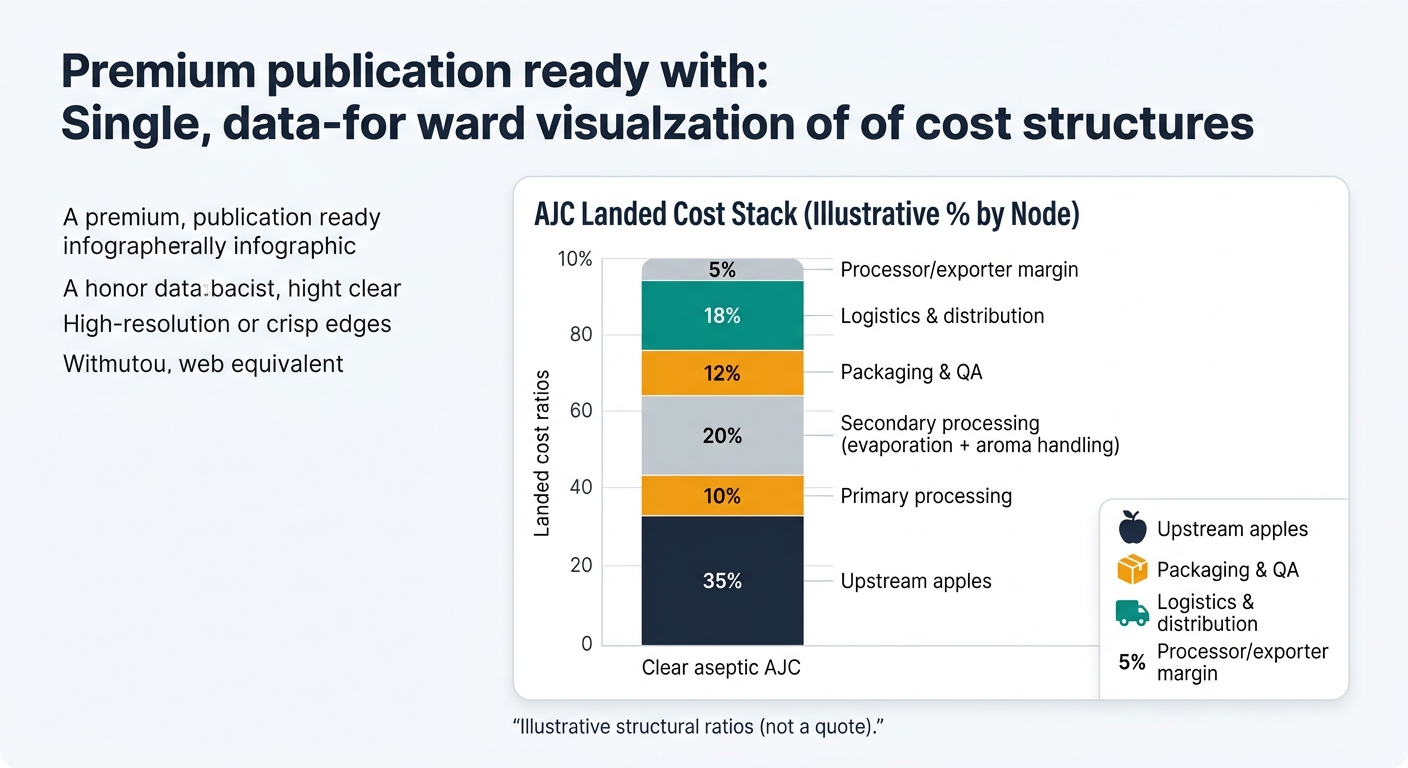

Product-Level Cost Breakdown (Illustrative Ratios)

These ratios are structural/typical—not a quote. They help teams see where costs are “physically created.”

A) Clear Aseptic Apple Juice Concentrate (~70–72°Bx) in Drums

Supply Chain Node	Cost Ratio (% of Final Landed Cost)	Notes
Upstream apples (processing-grade fruit)	35%	Driven by fruit solids/yield and harvest availability.
Primary processing (pressing/clarification)	10%	Enzymes, filtration, yield loss into pomace/fines.
Secondary processing (evaporation + aroma handling)	20%	Energy + plant utilization during campaign.
Packaging & QA (aseptic bags/drums + testing)	12%	High-barrier packaging, sterile filling, verification.
Logistics & distribution (inland + ocean + warehousing)	18%	Container freight, port handling, inventory carrying.
Processor/exporter margin	5%	Varies by integration and market tightness.

B) Frozen Apple Juice Concentrate (~70°Bx) (Less Common in Bulk Trade)

Supply Chain Node	Cost Ratio (% of Final Landed Cost)	Notes
Upstream apples	33%	Similar fruit economics to aseptic.
Primary processing	10%	Similar extraction/clarification requirements.
Secondary processing	18%	Evaporation energy still central.
Packaging & QA	10%	Packaging differs; integrity and testing still critical.
Cold-chain logistics + frozen storage	24%	Freezing energy + reefer transport/storage adds structural cost.
Processor/exporter margin	5%	Typically stable unless capacity is constrained.

C) Reconstituted Apple Juice “From Concentrate” (Single-Strength, ~11.5–13.3°Bx)

Supply Chain Node	Cost Ratio (% of Final Cost at Juice Plant Gate)	Notes
Concentrate input (AJC)	55%	Dominant cost driver; determined upstream.
Water + blending/standardization	8%	Water treatment, brix/acid adjustments, blending losses.
Pasteurization/processing	10%	Thermal processing + utilities.
Packaging (consumer or foodservice pack)	20%	Often the largest incremental cost vs bulk concentrate.
Plant margin/overheads	7%	Site-dependent.

3) Structural Facts Every Buyer Should Treat as “Constants”

Insight

Three non-obvious realities repeatedly shape AJC availability, quality workload, and landed cost—regardless of which origin you buy from.

Data

Two of these constants are anchored in U.S. regulatory/standards reality: (1) brix definitions/specification frameworks for apple juice/concentrate trade, and (2) contamination controls (e.g., patulin) that apply to apple juice and concentrates.

Procurement Impact

These are not market “events.” They are structural constraints that determine how much risk and cost you must carry in specs, QA capacity, and inventory design.

• Structural reality #1 (Seasonal conversion + inventory carry): AJC is produced in a post-harvest campaign, then stored and shipped for months. That means working capital and storage are embedded in the physical model, not optional.
• Structural reality #2 (Concentration factor magnifies quality risk): Concentration doesn’t just remove water; it concentrates defects and contaminants. FDA’s compliance policy guidance uses 50 ppb patulin as the action level, measured on single-strength juice (or reconstituted single-strength for concentrate).
• Structural reality #3 (Aseptic integrity is a cost driver, not a packaging preference): Bag-in-drum aseptic formats enable ambient logistics, but they introduce a hard dependency on sterile filling, liner quality, and handling discipline—failures are disproportionately expensive because each drum contains high-value solids.

Key Insights (What to Remember When You Look at Any AJC Spec Sheet)

• Insight: AJC is a solids-and-energy business: fruit solids upstream and evaporation energy midstream explain most of the unavoidable cost.
• Data: Unconcentrated natural apple juice is listed at ~13.3°Bx in U.S. customs brix tables; commercial concentrates commonly target ~70–72°Bx and ship aseptically in drums (~250–275 kg net is common, often ~260 kg).
• Procurement Impact: If you want predictable performance, focus on what is physically measurable and stable at receipt: brix tolerance, acidity/pH ranges, color, turbidity/clarity, aseptic integrity (seals/liners), and contaminant controls (notably patulin at the single-strength basis), rather than assuming “apple juice is apple juice.”

The Bottom Line for Your Next Contract

(Analyzed at: May, 2026)

In the current market, China is reported to be carrying surplus AJC stocks even after weather-related production losses, which tends to cap spot price upside but increases the risk of “commercially motivated” lot variability if you buy opportunistically without governance. Lock in a two-origin portfolio (e.g., keep your incumbent origin but qualify a second plant/origin for 20–30% of volume) and write receipt terms that force lot-level traceability plus patulin compliance on a reconstituted single-strength basis. It works because the biggest cost-and-risk creation points (yield, evaporation control, aseptic integrity) are fixed upstream, and your only real leverage downstream is acceptance criteria and the ability to switch volume quickly. Teams that wait until a disruption typically pay a mid-to-high single-digit premium in expedited freight, rework, or claims—often more than the price gap they were trying to save.
