Frozen mango juice concentrate is easy to mis-buy if you treat it like a generic fruit ingredient. In reality, you’re buying a year-round inventory system built in a short harvest window, then protected through an uninterrupted frozen custody chain. This guide maps the physical flow and pinpoints the few nodes where cost locks in—and the many nodes where claims and disruption risk accumulate.

Executive Summary

• Frozen mango concentrate is typically specified and handled as a continuous ≤0°F / -18°C cold-chain product, with quality preservation tied to time-at-temperature and custody records. [1]
• Commercial specs commonly cluster around clarified mango juice concentrate ~65°Bx (beverage clarity) and mango puree concentrate ~28–30°Bx (cloudy/nectar/dairy/bakery), with ± tolerances by supplier. [2]
• The structural bottlenecks are fruit solids/yield, evaporator + frozen filling throughput, and cold storage/reefer dwell time—these don’t disappear when prices soften.
• As of May 2026, procurement risk is less about “one freight line item” and more about port dwell + cold storage exposure in a market where ocean rates have been volatile and some origins report tighter mango availability (e.g., Peru 2025/26 down vs prior season). [3]

1) The Physical Map You’re Actually Buying Into (Ground Truth)

Frozen mango juice concentrate is not “just a fruit ingredient.” It is a year-round industrial inventory system built during a short harvest window, then carried through a continuous frozen cold chain (commonly managed around 0°F / -18°C). The fixed cost-drivers are set early—fruit yield, concentration energy, and freezing/storage capacity—and then amplified downstream by packaging integrity and reefer logistics. [1]

Insight: The supply chain’s hard constraints are (1) fruit-to-concentrate yield, (2) evaporator + freezing throughput, and (3) uninterrupted cold-chain dwell time.

Data (validated ranges, not a single “universal” spec): Typical commercial forms split into clarified juice concentrate (often ~65°Bx for beverage clarity) versus puree/pulp concentrate (commonly ~28–30°Bx for cloudy applications); both are commonly shipped in bulk packs (often ~180–220 kg class and sometimes higher) with frozen storage/handling expectations where the program is managed as frozen. [2]

Procurement Impact: Your “unit price” is the visible tip; the physical map determines where cost locks in (yield/energy) and where claims risk concentrates (packaging + temperature excursions).

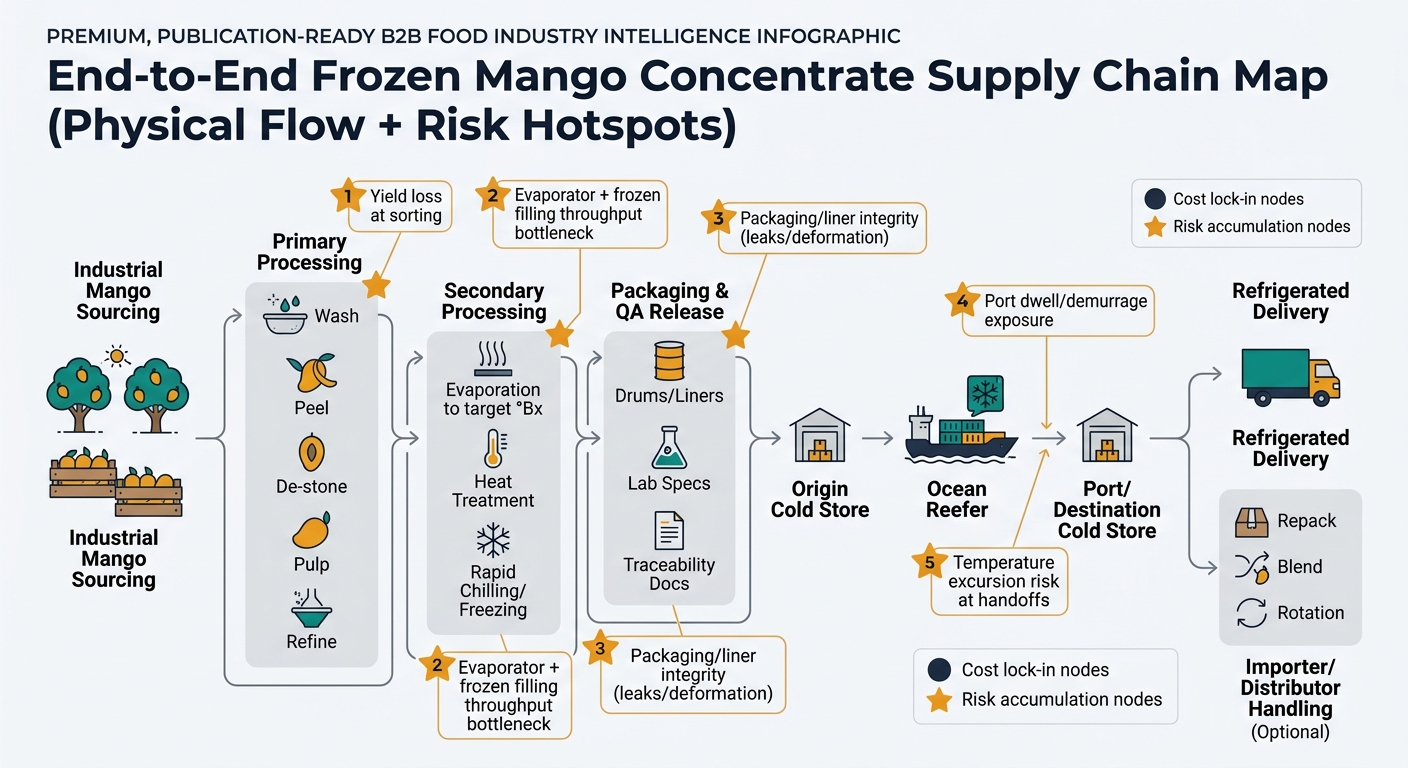

Supply chain flow (physical):

• Upstream: Industrial mango sourcing (variety/ripeness-driven solids, sorting losses)
• Primary processing: Wash/peel/de-stone/pulp/refine; microbial control begins
• Secondary processing: Evaporation to target °Bx (for concentrates); pasteurization/heat treatment; rapid chilling/freezing (for frozen programs)
• Packaging & QA release: Drum/liner integrity + lab specs + traceability documentation
• Cold-chain logistics: Origin cold store → ocean reefer → destination cold store → refrigerated delivery
• Importer/distributor handling: Repacking, blending, inventory rotation (often)

2) Where Cost and Margin Accumulate (Node-by-Node)

Insight: Frozen concentrate economics are dominated by three “physics” variables: soluble solids yield (fruit), energy per ton concentrated (plant), and cold-chain time-at-temperature (logistics + storage).

Data: Across origins, the same cost buckets recur: raw fruit + yield loss; utilities (steam/electricity) for evaporation; frozen-grade packaging; and reefer/cold-store costs that scale with transit time and port dwell.

Procurement Impact: When internal stakeholders ask “why did landed cost move?”, the answer is usually traceable to one node’s fixed constraints—not a uniform change across the chain.

1. Upstream / Raw Material (Industrial Mango)

• Insight: Fruit quality is an economic input, not just a sensory one—soluble solids and ripeness affect concentrate yield and the amount of water removal needed per unit of finished solids.
• Data: Industrial supply often includes dedicated processing orchards plus diverted fruit from fresh channels; sorting losses (bruise/decay/fiber/stone issues) directly reduce usable pulp yield.
• Procurement Impact: Two suppliers quoting the “same °Bx concentrate” can have structurally different cost bases depending on fruit solids and reject rates upstream.

2. Primary Processing (Pulping/Refining + Hygiene Controls)

• Insight: This node converts variable agricultural input into a controlled feedstock; sanitation and separation efficiency (peel/stone removal, screening) drive both yield and microbial stability.
• Data: Typical steps include washing, peeling, de-stoning, pulping, screening/refining; enzymatic treatment may be used depending on viscosity/clarity targets. Waste handling (peels/seeds) and water/CIP chemicals are non-trivial operating costs.
• Procurement Impact: If you see lot-to-lot viscosity or fiber variation downstream, the root cause is often screen/refiner settings and fruit maturity distribution at this node.

3. Secondary Processing (Concentration + Heat Treatment + Freezing)

• Insight: Evaporation is the energy and uptime bottleneck for concentrates; freezing and frozen storage capacity are the physical gatekeepers for exportable “frozen” product.
• Data: Concentration via evaporation raises soluble solids to spec (e.g., clarified mango juice concentrate commonly specified around 65°Bx; mango puree concentrate commonly specified around 28–30°Bx, depending on buyer standard and application). [2]
• Procurement Impact: Capacity constraints here are structural: evaporator throughput and frozen filling lines dictate how much of the harvest can be converted into sellable inventory.

4. Packaging & QA Release (Drums/Blocks + Spec Compliance)

• Insight: Packaging is a critical control point because frozen concentrate expands/contracts; liner selection and headspace management influence leakage, drum deformation, and oxygen exposure.
• Data: Common formats include bulk drums (often ~180–220 kg class, sometimes higher) with liners, or frozen blocks/cartons; QA release typically includes °Bx, pH/acidity, color, sensory, micro limits, and foreign matter/metal detection.
• Procurement Impact: Claims frequently originate here: a “small” packaging failure becomes a cold-chain incident, a contamination concern, or a rework/disposal event at destination.

5. Cold-Chain Logistics & Distribution (Reefer + Cold Stores)

• Insight: Frozen is a time-and-temperature product; logistics cost is not just freight—it’s the cumulative cost of holding and protecting inventory through every handoff.
• Data: Cost drivers typically include origin freezing and cold-store dwell, ocean reefer freight, port fees and demurrage risk, destination cold storage, and refrigerated trucking. Frozen programs are typically managed around 0°F / -18°C end-to-end, with temperature history increasingly treated as a commercial control point. [4]
• Procurement Impact: The same ex-works product can land with very different effective cost and usability depending on port dwell time, reefer availability, and destination cold-store capacity.

6. Importer/Distributor Handling (Inventory Rotation + Optional Blending/Repack)

• Insight: Many buyers indirectly buy an inventory management service: rotation, partial releases, repacking, and occasional blending to hit consistent color/solids.
• Data: Downstream handling adds labor, cold-store overhead, QA re-testing, and margin; it can also reduce operational burden for manufacturers that lack frozen storage or want smaller drop sizes than full-container.
• Procurement Impact: When you compare “direct from processor” versus “via distributor,” the physical difference is often who carries cold inventory, who assumes handling loss risk, and who pays for re-testing.

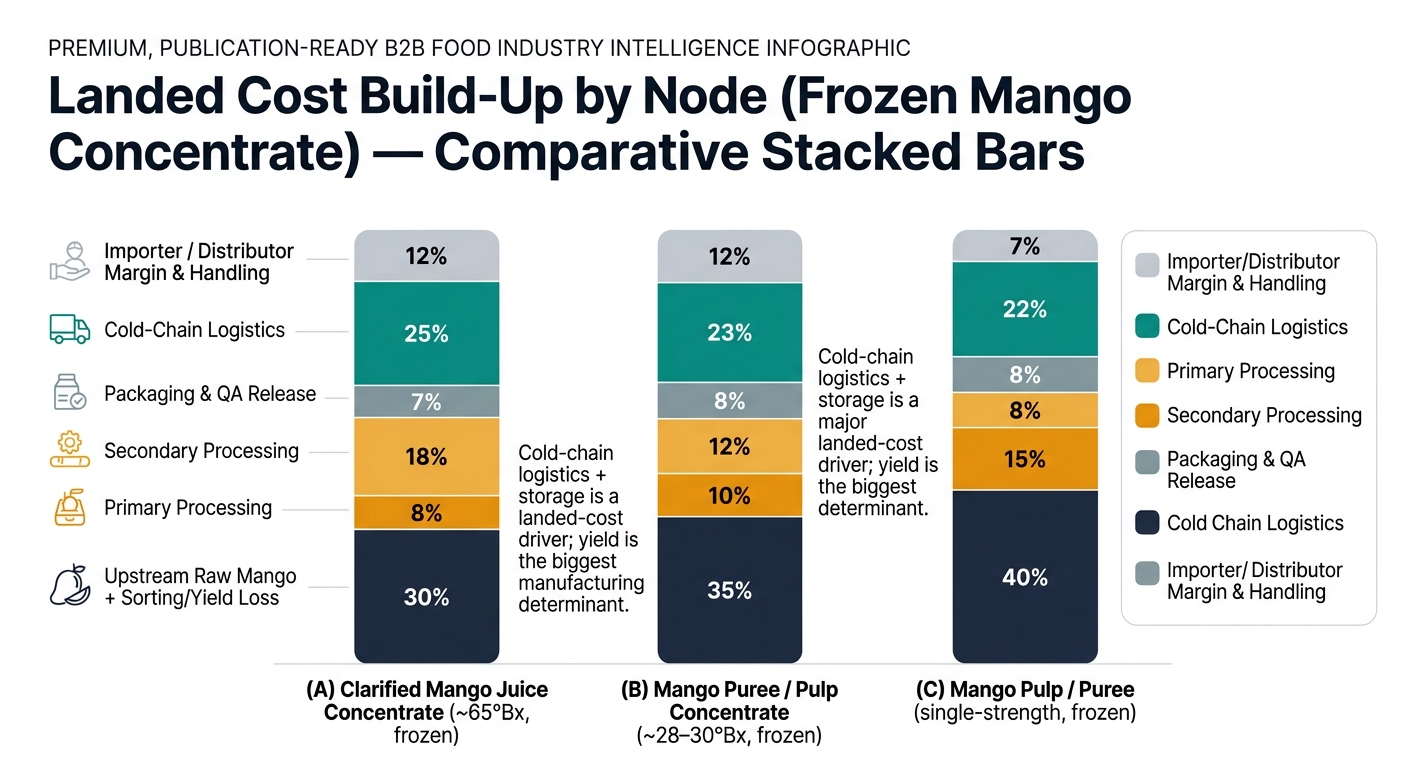

Product-Level Cost Breakdown

A) Clarified Mango Juice Concentrate (Frozen, ~65°Bx class)

Supply Chain Node	Cost Ratio (% of Final Landed Cost)	Notes
Upstream Raw Mango + Sorting/Yield Loss	30%	Solids yield and reject rate set the cost base.
Primary Processing (pulping/refining/hygiene)	8%	Separation efficiency + sanitation overhead.
Secondary Processing (evaporation + heat treatment + freezing)	18%	Energy + uptime; clarified lines may add filtration/enzymes.
Packaging & QA Release	7%	Drum/liner quality, lab testing, documentation.
Cold-Chain Logistics (reefer + cold stores)	25%	Time-at-temperature costs; port dwell is a multiplier.
Importer/Distributor Margin & Handling	12%	Rotation, re-testing, repack/blend services where used.

B) Mango Puree/Pulp Concentrate (Frozen, ~28–30°Bx class)

Supply Chain Node	Cost Ratio (% of Final Landed Cost)	Notes
Upstream Raw Mango + Sorting/Yield Loss	35%	Fruit maturity/fiber affects yield and texture.
Primary Processing (pulping/refining)	10%	Screen settings drive fiber/viscosity outcomes.
Secondary Processing (concentration + freezing)	12%	Lower °Bx than 65°Bx class typically reduces evaporation intensity.
Packaging & QA Release	8%	Higher viscosity can stress filling/liner performance.
Cold-Chain Logistics (reefer + cold stores)	23%	Frozen logistics still a major landed-cost driver.
Importer/Distributor Margin & Handling	12%	Storage, partial releases, QA re-checks.

C) Mango Pulp/Puree (Single-Strength, Frozen)

Supply Chain Node	Cost Ratio (% of Final Landed Cost)	Notes
Upstream Raw Mango + Sorting/Yield Loss	40%	Less value recovery from concentration; fruit quality dominates.
Primary Processing (pulping/refining)	15%	Highest relative share because there’s no evaporation value-add.
Secondary Processing (heat treatment + freezing)	8%	No evaporation, but freezing remains essential.
Packaging & QA Release	8%	Similar packaging controls; higher water content increases freeze expansion considerations.
Cold-Chain Logistics (reefer + cold stores)	22%	Heavier/waterier product can raise freight per unit of solids.
Importer/Distributor Margin & Handling	7%	Often simpler handling but still cold-store intensive.

3) Structural Realities That Don’t Change (Even When Markets Do)

Insight: Frozen mango concentrate behaves like a “manufactured inventory commodity” more than a fresh fruit derivative—structural constraints persist regardless of short-term pricing cycles.

Data: The same three constraints repeatedly shape availability and claims risk: harvest-window conversion capacity, packaging integrity under freeze/thaw stress, and cold-chain infrastructure reliability.

Procurement Impact: If you ignore these constants, you misdiagnose supply problems as commercial issues when they are physical bottlenecks.

• Insight: Harvest windows create a production-and-storage system, not continuous production.
• Data: Processors typically secure fruit during harvest, run plants hard, and then carry inventory for months; working capital and cold-store uptime become part of the product’s cost structure.
• Procurement Impact: Any disruption to cold storage (power reliability, freezer capacity) can be as consequential as a poor harvest.
• Insight: Spec tightness is physically linked to process capability (not just QA preference).
• Data: Targets like °Bx, pH/acidity, viscosity/clarity, color, and micro limits depend on fruit inputs plus screening/evaporation/thermal steps; clarified vs puree concentrate are fundamentally different process paths.
• Procurement Impact: When you require both tight color and tight viscosity, you’re implicitly selecting for specific equipment and process control maturity.
• Insight: Cold-chain dwell time is a cost multiplier and a quality risk amplifier.
• Data: Reefer ocean freight is only one line item; port dwell, demurrage, and destination cold-store constraints add hidden cost and raise the probability of temperature excursions.
• Procurement Impact: The “same” shipment can arrive with different usability outcomes depending on handoffs, recorder integrity, and time in uncontrolled environments.

Key Insights (What to Remember When You Look at Any Supplier Offer)

Insight: The frozen mango concentrate supply chain has a small number of value-creation steps (yield conversion, evaporation, freezing) and a large number of value-protection steps (packaging, documentation, cold-chain custody).

Data: In many landed-cost structures, cold-chain logistics plus storage can rival or exceed secondary processing costs, while upstream fruit yield remains the single biggest determinant of manufacturing economics.

Procurement Impact: If you want predictable performance, focus your internal review on the physical proof points: how the supplier controls solids yield, how they manage evaporation/freezing throughput, and how packaging + temperature custody are validated across every handoff.

4) The Bottom Line for Your Next Contract

(Analyzed at: May 2026) Put temperature custody and inventory optionality on the same level as unit price: write contracts that require shipment-level temperature history tied to lot IDs (and clear dispute rules for recorder gaps), while keeping a pre-qualified secondary origin/supplier ready to activate.

This works because the biggest avoidable P&L hits in frozen chains are still claims, rejections, and rework triggered by packaging failures and time-at-temperature events—especially when port dwell or reefer availability shifts unexpectedly. With ocean rates still moving and some origin supply tighter in the 2025/26 cycle (e.g., Peru reporting lower production), the cost of being forced into late replacement volume is often a low-teens percent landed-cost premium once you include expedited logistics, disposal, and downtime. [3]
