Beet juice concentrate looks simple—“just a farm product concentrated and packed”—but most cost and risk are structurally embedded in a few physical constraints: harvest-to-plant logistics, energy-intensive evaporation, and packaging/stability controls for a color-sensitive ingredient. This guide maps the chain end-to-end and highlights where procurement teams can influence total landed cost, continuity, and governance outcomes.
Beet juice concentrate is a seasonal agricultural input converted into a year-round industrial ingredient by running processing plants hard during harvest, then stabilizing and storing concentrated inventory in drums/totes. The physical chain is short, but the cost structure is cumulative: bulky roots must move quickly to extraction; then energy-intensive evaporation and high-barrier packaging protect a color-sensitive product from oxygen, heat, and light.
Insight: The supply chain’s biggest fixed cost “locks” occur at (1) harvest-to-plant logistics for a heavy, low-value root and (2) concentration + stabilization steps that protect betalain color through controlled processing and packaging.
Data (validated, with caveats): Listings in the ingredient market show beet juice concentrate commonly offered at high solids (e.g., 70 °Brix) in drums; 200–220 L is a common industrial drum size for bag-in-drum systems across concentrate categories. Treat “70 °Brix in drums” as a common commercial format—not a universal standard across all suppliers and applications. [2]
Procurement Impact: When you see cost movement downstream, it usually traces back to physical constraints upstream: root availability/quality, plant throughput, utilities/steam, and oxygen-managed packaging—not “soft” commercial factors.

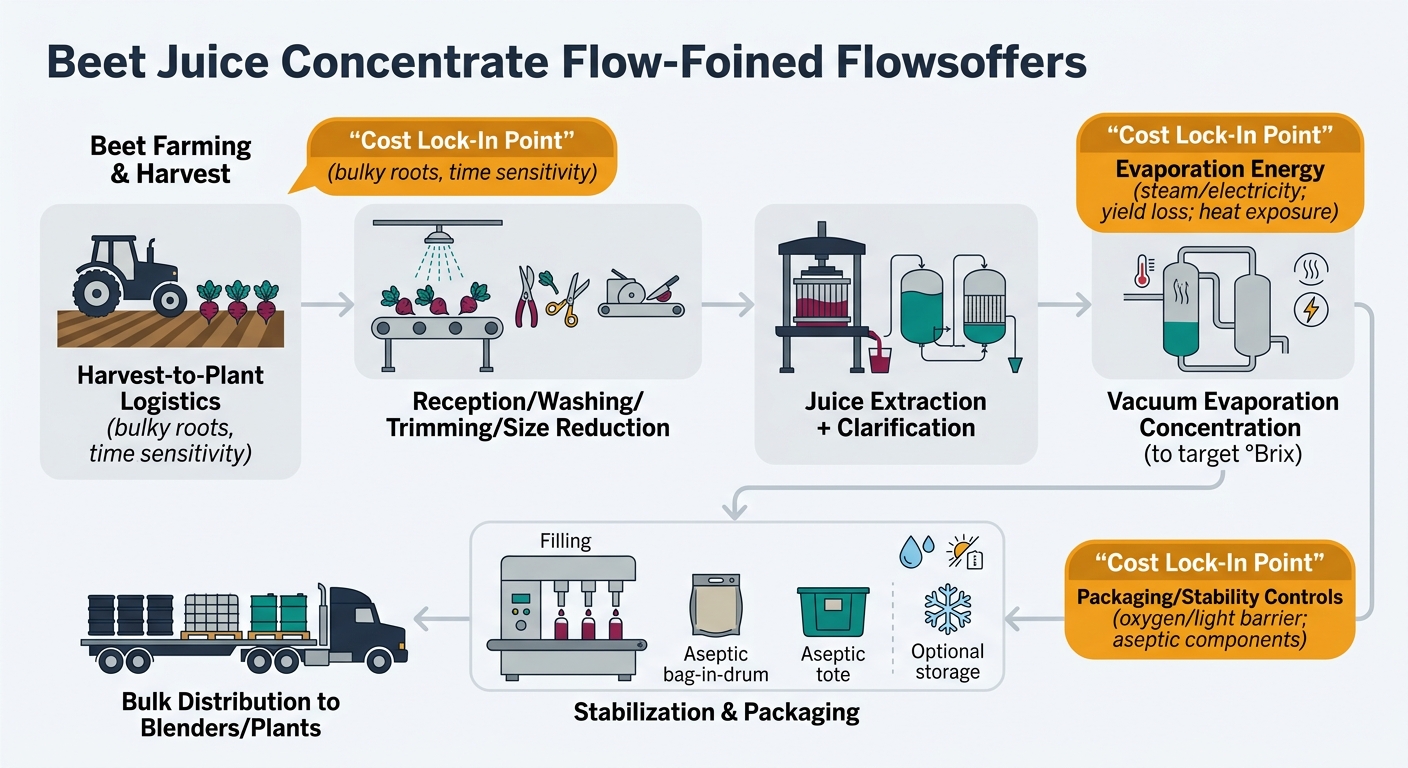

Physical flow (typical):
Insight: Beet juice concentrate economics are dominated by conversion costs (utilities + yield loss + packaging) because the product’s value is created by removing water while preserving color and microbiological status.
Data (validated): EFSA’s scientific opinion on beetroot red (E162) discusses betalain/betacyanin characteristics and stability considerations; in practice, processors manage degradation risks through controlled processing conditions and protective packaging. [3]
Procurement Impact: Even with the same origin, two suppliers can have structurally different costs if their plants differ in evaporator efficiency, oxygen control, aseptic capability, and yield management.
| Supply Chain Node | Cost Ratio (% of Final Cost) | Notes |
|---|---|---|
| Raw Material (beets at plant gate) | 25–35% | Yield/solids and harvest logistics drive effective cost per kg concentrate. |
| Primary Processing | 10–15% | Washing water, extraction yield, clarification/filtration, wastewater handling. |
| Secondary Processing (evaporation/standardization) | 20–30% | Utilities/steam/electricity + yield loss; color preservation controls. |
| Packaging & QA Release | 10–18% | Aseptic bag-in-drum liners, drums, sterile valves, QC testing, documentation. |
| Storage (ambient vs frozen) | 3–10% | Working-capital time + warehousing; frozen adds energy and handling. |
| Logistics & Distribution | 8–15% | Drum/tote freight, containerization, temperature control if required. |
| Supply Chain Node | Cost Ratio (% of Final Cost) | Notes |
|---|---|---|
| Raw Material | 25–35% | Similar agricultural exposure; quality variance can be higher if roots are mixed grades. |
| Primary Processing | 10–15% | Higher sensitivity to turbidity/sediment if clarification is less robust. |
| Secondary Processing | 20–30% | Same evaporation physics; color loss risk increases with oxygen exposure. |
| Packaging & QA Release | 6–12% | IBC can be lower unit packaging cost; shelf-life protection may be reduced vs aseptic. |
| Storage | 3–8% | Shelf-life constraints can tighten rotation requirements. |
| Logistics & Distribution | 10–18% | Totes change handling and backhaul; damage/leak risk profile differs. |
| Supply Chain Node | Cost Ratio (% of Final Cost) | Notes |
|---|---|---|
| Beet-derived feedstock (juice/extract) | 20–30% | Starting material quality and pigment content affect extraction yield. |
| Extraction / Purification / Standardization | 25–40% | Processing intensity increases vs juice concentrate; tighter specs. |
| Stabilization (pH/antioxidant systems) | 5–15% | Pigment stability management; formulation-dependent. |
| Packaging & QA Release | 8–15% | Light/oxygen protection becomes more critical for color products. |
| Logistics & Distribution | 8–15% | Temperature/light exposure control; smaller packs but higher value density. |
| Manufacturer/Distributor Margin | 10–20% | Higher technical service and spec assurance typically embedded. |
Insight: The chain is built to convert a harvest window into year-round supply, so inventory is structural, not optional.
Data: Industrial concentrate packaging formats (including bag-in-drum systems) are designed to support extended storage, but actual shelf life is product- and process-specific and should be verified per supplier. [5]
Procurement Impact: Even if demand is steady, the system’s physical design means costs will include storage time, QC release, and rotation discipline—especially for color-sensitive lots.
Insight: Betalain pigments degrade with heat, light, and oxygen, so “same °Brix” does not guarantee “same performance.”
Data (validated): EFSA’s re-evaluation of beetroot red (E162) and related technical literature discuss stability limitations and degradation mechanisms that matter in real processing and storage conditions. [3]
Procurement Impact: Physical controls (vacuum evaporation severity, deaeration, headspace oxygen, barrier liners) become embedded cost drivers—often explaining why two offers with identical solids can behave differently in your finished product.
Insight: Aseptic programs require compatible fillers, sterile valves/liners, and handling discipline; packaging availability can become a throughput bottleneck.
Data: Aseptic bag-in-drum systems are commonly built around 200–220 L drum formats and specialized barrier materials designed for liquid foods and concentrates. [5]
Procurement Impact: When packaging is constrained, it can cap finished-goods output even if beets and evaporator capacity are available—creating physical tightness that shows up as lead-time and allocation behavior.
(Analyzed at: Jul, 2026) Write your next beet-juice-concentrate contract so that packaging + oxygen/light control are commercial terms, not “QA footnotes.” Specifically, lock the fill system (aseptic vs non-aseptic), the pack format (often 200–220 L bag-in-drum where aseptic is required), and measurable stability proxies (e.g., agreed headspace/DO handling statements, shelf-life basis, and a clear claims process for color drift). This works because betalain stability is materially affected by processing and exposure conditions, so “same °Brix” does not equal “same performance.” [3]
What’s at stake is typically not the liner cost—it’s avoiding late-stage blend adjustments, rework, or write-offs that can quietly add mid- to high-single-digit percentage points to total landed cost when a lot fails after you’ve already carried it in inventory.
